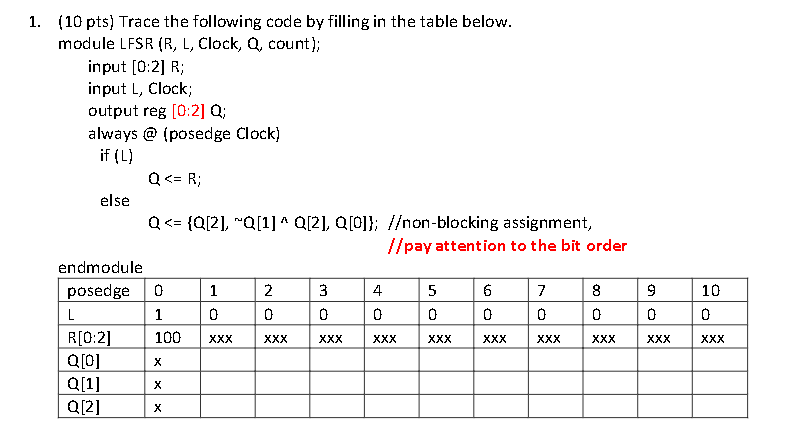

Question: ( 1 0 pts ) Trace the following code by filling in the table below. module LFSR , Clock, Q , count

(10 pts) Trace the following code by filling in the table below.
module LFSR , Clock, Q, count
(10 pts) Trace the following code by filling in the table

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
