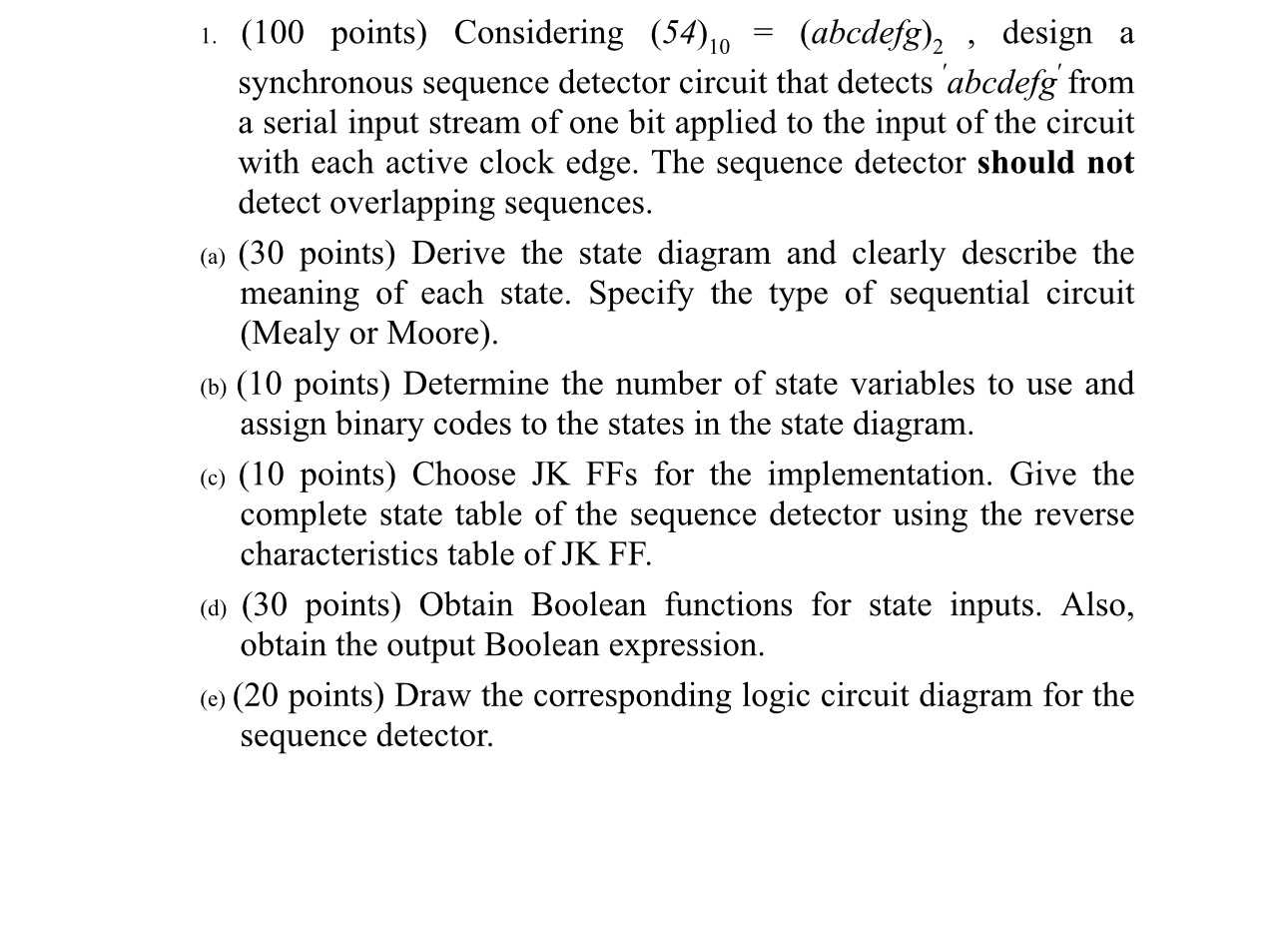

$1.(100$ points$)$ Considering $(54)10=($abcdefg$),,$ design a synchronous sequence detector circuit that detects abcdefg from a serial input stream of one bit applied to the input of the circuit with each active clock edge. The sequence detector should not detect overlapping sequences.$($a$)(30$ points$)$ Derive the state diagram and clearly describe the meaning of each state. Specify the type of sequential circuit $($Mealy or Moore$).($b$)(10$ points$)$ Determine the number of state variables to use and assign binary codes to the states in the state diagram.$($c$)(10$ points$)$ Choose JK FFs for the implementation. Give the complete state table of the sequence detector using the reverse characteristics table of JK FF$.($d$)(30$ points$)$ Obtain Boolean functions for state inputs. Also, obtain the output Boolean expression. e$)(20$ points$)$ Draw the corresponding logic circuit diagram for the sequence detector.
