Question: 1 . 1 2 Given: A wing spar is subjected to the combined loading shown. Required: Determine the state of stress at points A and

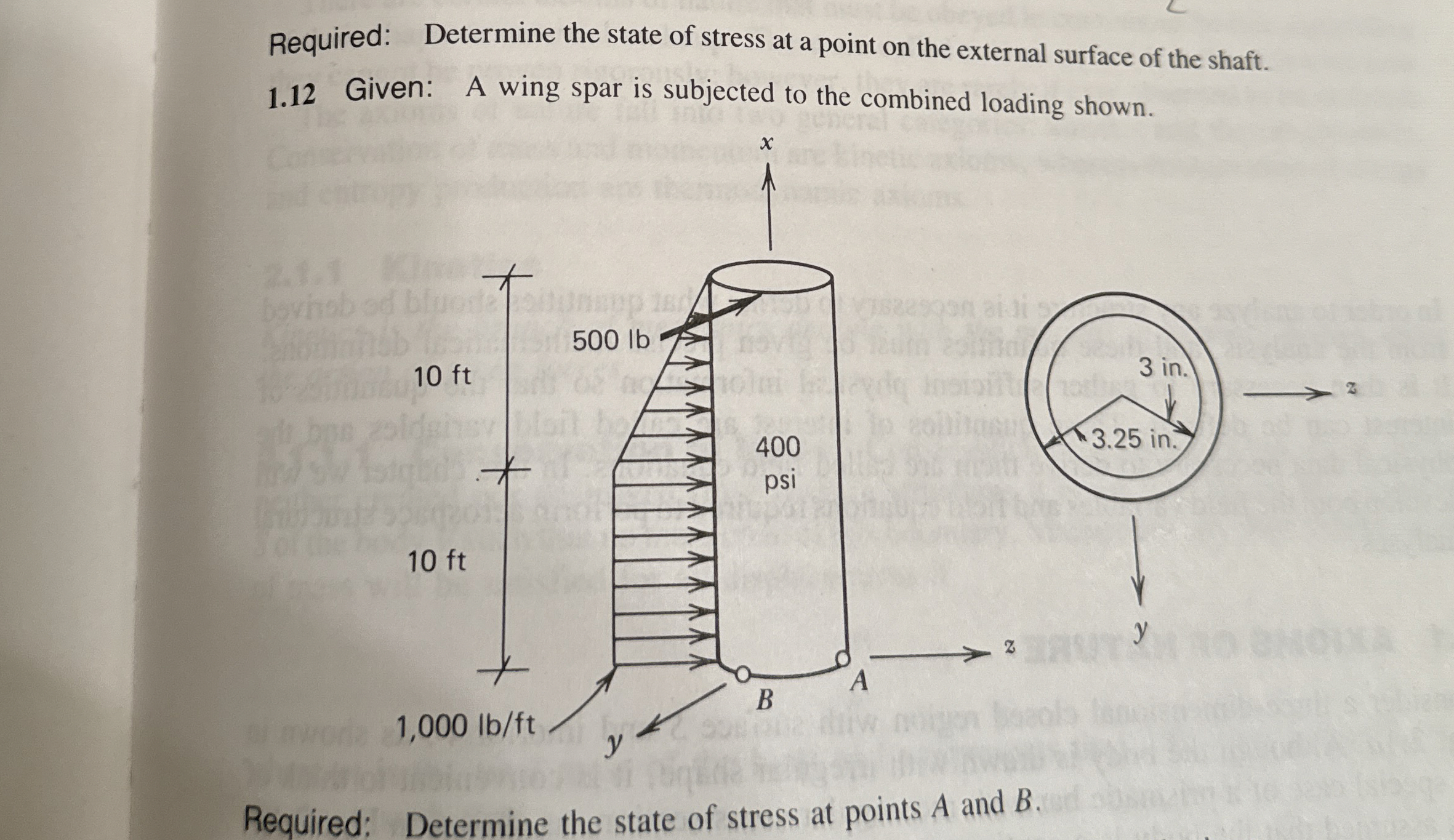

1.12 Given: A wing spar is subjected to the combined loading shown.
Required: Determine the state of stress at points A and B.
1 . 1 2 Given: A wing spar is subjected to the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
