Question: 1 5 . 1 4 . The feedforward controller was derived to provide perfect control. Using the block diagram in Figure 7 . 4 ,

15.14. The feedforward controller was derived to provide perfect control. Using
the block diagram in Figure 7.4, derive the feedback controller that gives
perfect control. Are there any reasons why this controller is not practical?

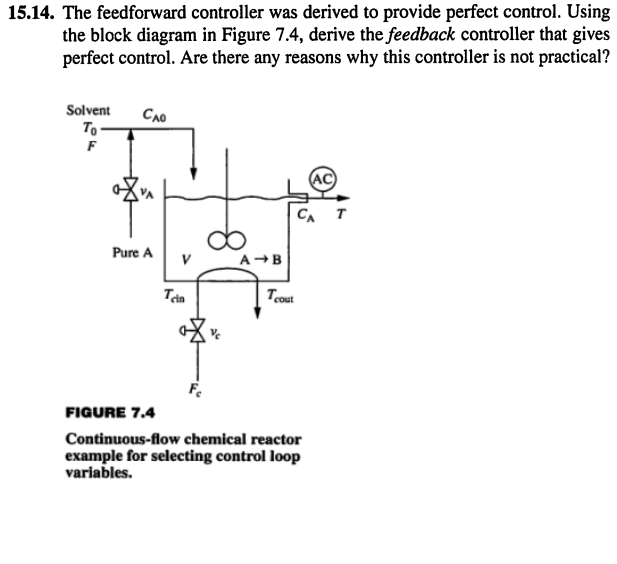

FIGURE 7.4
Continuous-flow chemical reactor
example for selecting control loop
variables.
15.14. The feedforward controller was derived to provide perfect control. Using

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
