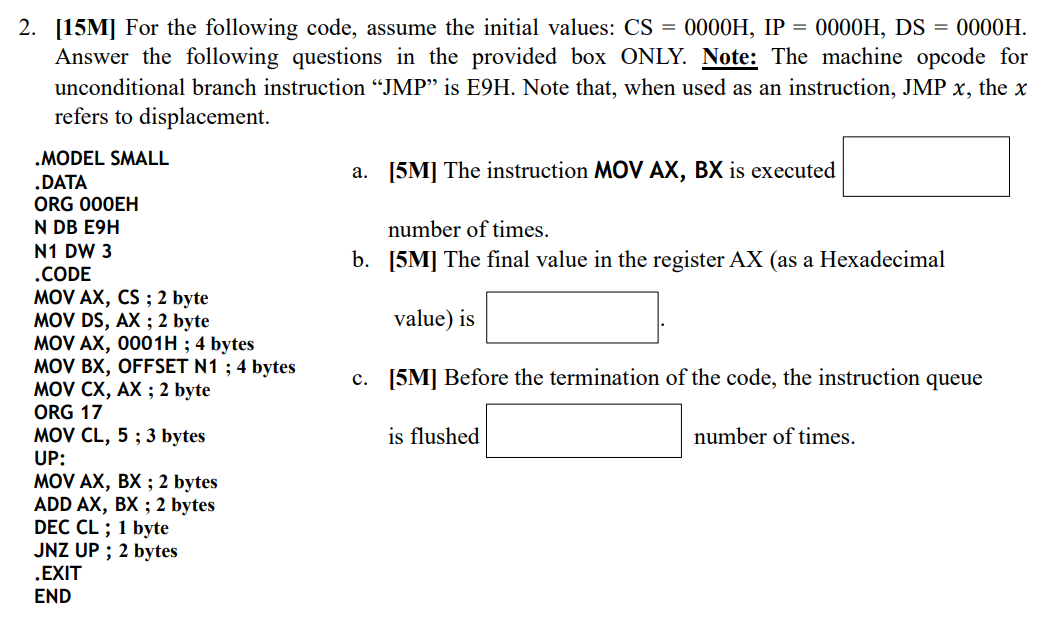

$15M$ For the following code, assume the initial values: $CS=0000H,IP=0000H,DS=0000H.$

Answer the following questions in the provided box ONLY. Note: The machine opcode for

unconditional branch instruction $"$JMP$"$ is E$9$H$.$ Note that, when used as an instruction, JMP $x,$ the $x$

refers to displacement.

$.$MODEL SMALL

$.$DATA

ORG OOOEH

N DB E$9$H

N$1$ DW $3$

$.$CODE

MOV AX$,$ CS ; $2$ byte

MOV DS$,$ AX ; $2$ byte

MOV AX$,0001$H ; $4$ bytes

MOV BX$,$ OFFSET $N1$;$4$ bytes

MOV CX$,$ AX ; $2$ byte

ORG $17$

MOV CL$,5$ ; $3$ bytes

UP:

MOV AX$,$ BX ; $2$ bytes

ADD AX$,$ BX ; $2$ bytes

DEC CL; $1$ byte

JNZ UP ; $2$ bytes

$.$EXIT

END

a$.5M$ The instruction MOV AX$,$ BX is executed

number of times.

b$.5M$ The final value in the register AX $($as a Hexadecimal

value$)$ is

c$.5M$ Before the termination of the code, the instruction queue

is flushed

number of times.
