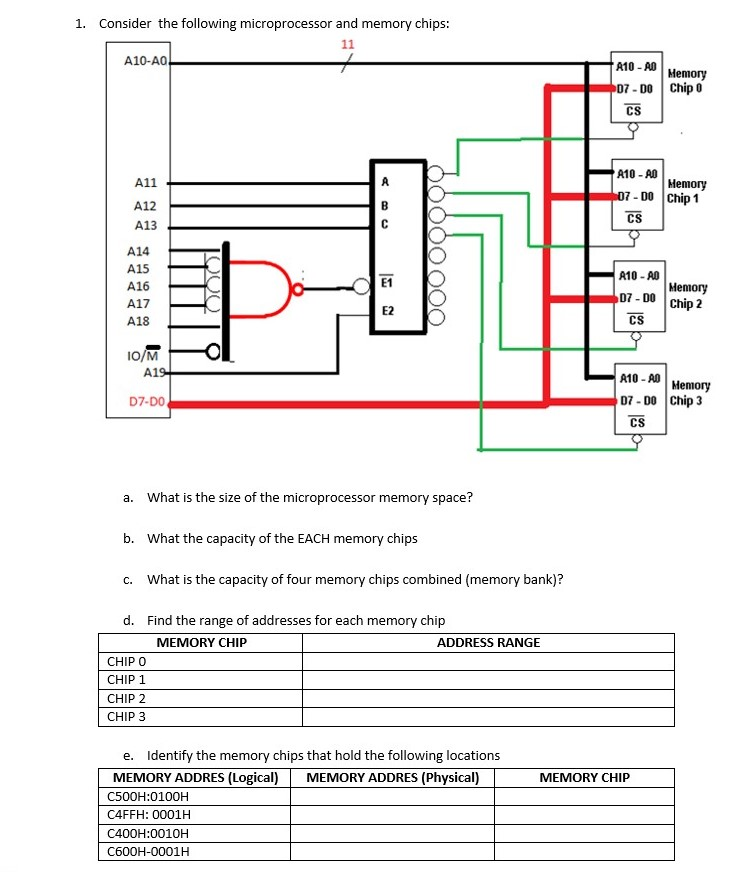

1. Consider the following microprocessor and memory chips:

a. What is the size of the microprocessor memory space?

b. What the capacity of the EACH memory chips?

c. What is the capacity of four memory chips combined (memory bank)?

d. Find the range of addresses for each memory chip

MEMORY CHIP	ADDRESS RANGE
CHIP 0
CHIP 1
CHIP 2
CHIP 3

e. Identify the memory chips that hold the following locations

MEMORY ADDRES (Logical)	MEMORY ADDRES (Physical)	MEMORY CHIP
C500H:0100H
C4FFH: 0001H
C400H:0010H
C600H-0001H

1. Consider the following microprocessor and memory chips: A10-A0 A10-A0 Hemory 07-DO Chip 0 CS A10-AO A11 Hemory 7-D0 Chip 1 A12 CS A13 A14 15 A16 A17 A18 A10-A0 D7 DO CS E1 Chip 2 E2 O/M A1 A10Aemory D7-D0 Chip 3 D7-DO CS What is the size of the microprocessor memory space? What the capacity of the EACH memory chips What is the capacity of four memory chips combined (memory bank)? Find the range of addresses for each memory chip a. b. c. d. MEMORY CHIP ADDRESS RANGE CHIP 0 CHIP 1 CHIP 2 CHIP 3 e. Identify the memory chips that hold the following locations MEMORY ADDRES (Logical MEMORY ADDRES (Physical) C500H:0100H C4FFH: 0001H C400H:0010H C600H-0001H MEMORY CHIP
