Question: 1 - Consider the mechanical system depicted in Fig . 1 : Fig. ( 1 ) The system is composed by a body of mass

1- Consider the mechanical system depicted in Fig.1:
Fig. (1)

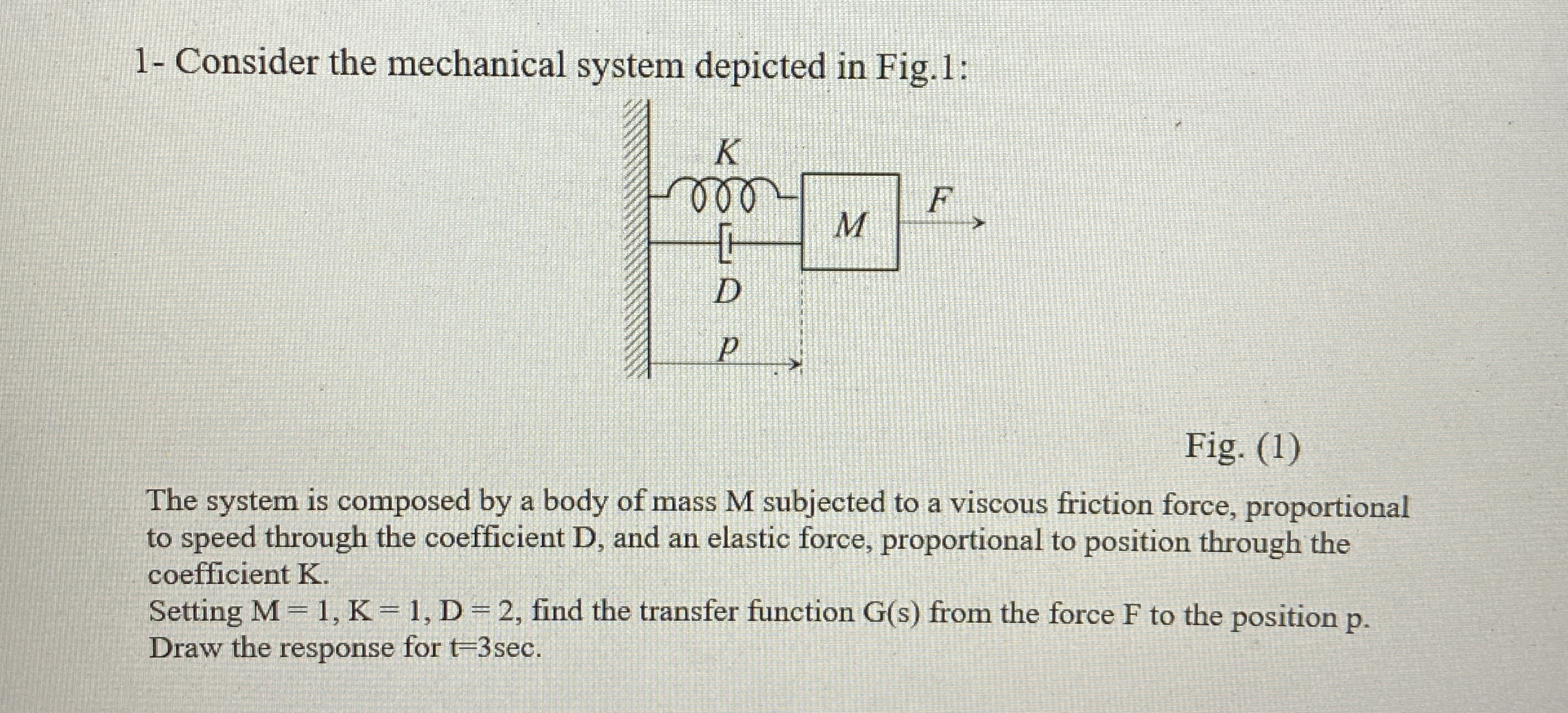

The system is composed by a body of mass M subjected to a viscous friction force, proportional to speed through the coefficient D , and an elastic force, proportional to position through the coefficient K.
Setting M=1,K=1,D=2, find the transfer function G(s) from the force F to the position p. Draw the response for t=3sec.
1 - Consider the mechanical system depicted in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
