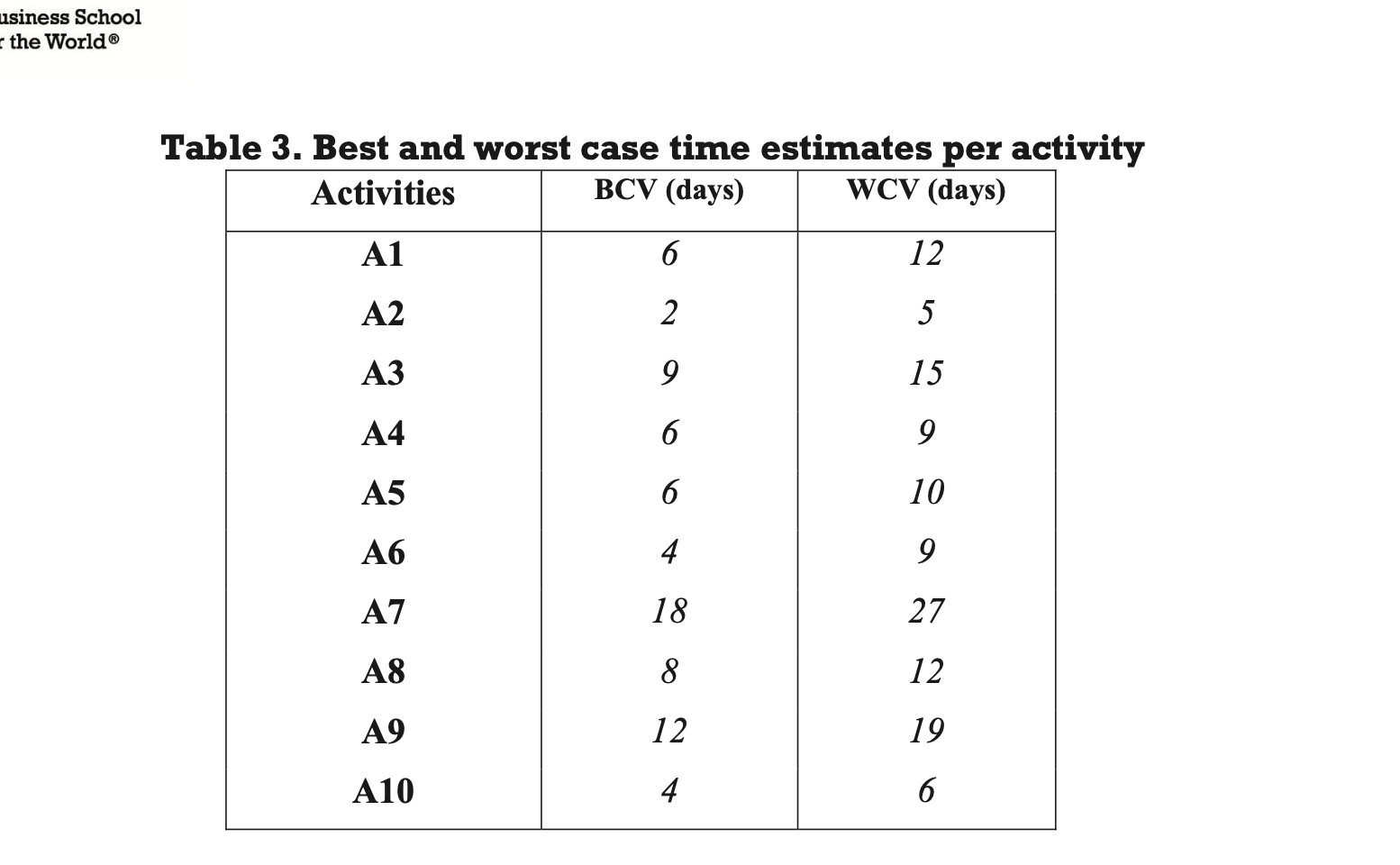

1) Draw the project network diagram (based on Table 2S). 2) Using the data given in tables 1-3, a. Calculate the expected project duration. b. Report the ES, EF, LS, LF, and Slack Times in a table like the one on page 3 of your Project Management note packet. c. Determine the critical path. d. What is the expected cost of the project? Consider Table 4 costs as costs associated with the expected duration of activities. Hint: As mentioned above, the time values in Table 1 should be considered most likely durations, rather than expected durations.

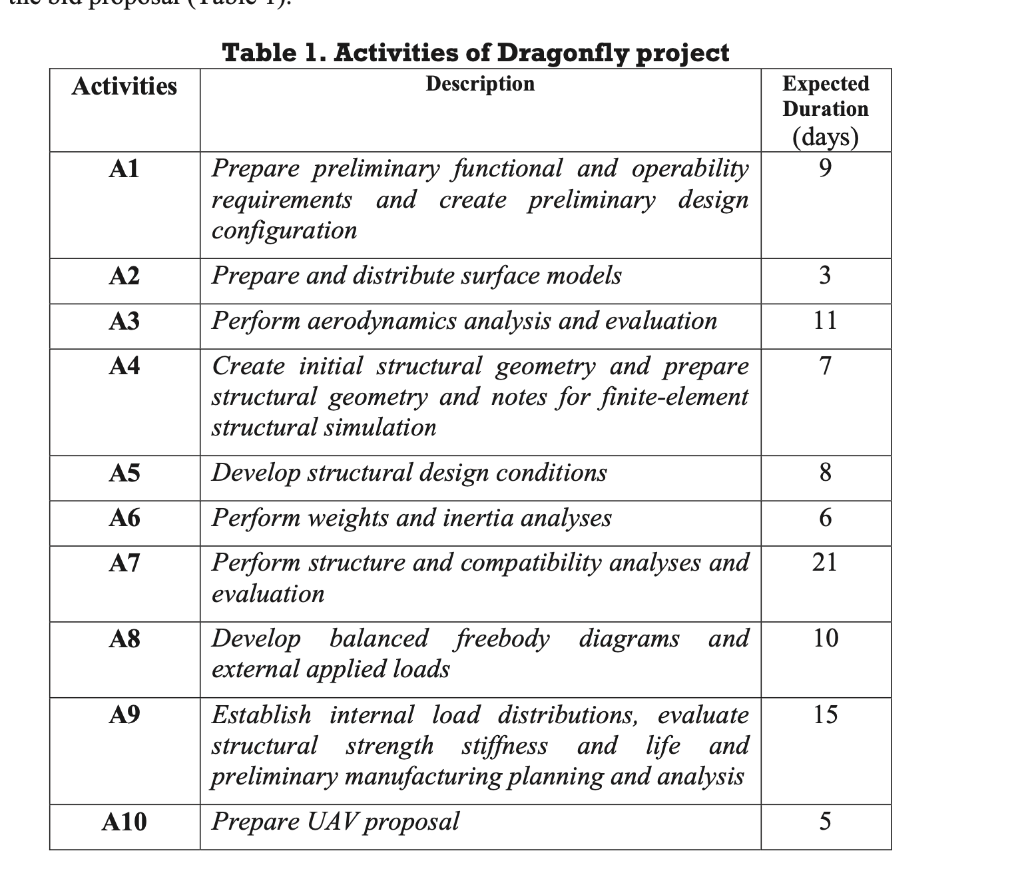

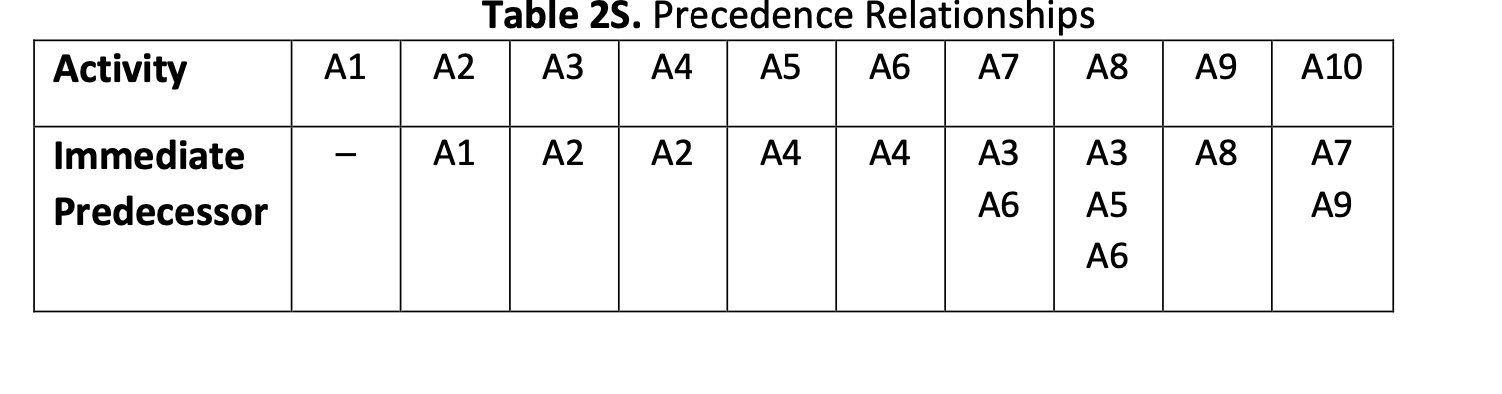

rable 2S. Precedence Relationships Table 1. Activities of Dragonfly project usiness School the World rable 2S. Precedence Relationships Table 1. Activities of Dragonfly project usiness School the World
