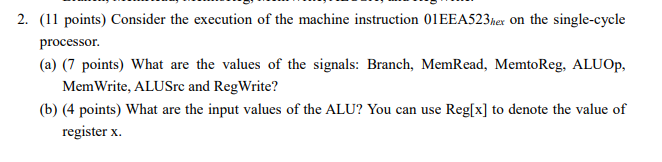

$2.(11$ points$)$ Consider the execution of the machine instruction $01$EEA$523$hex on the single$-$cycle

processor.

$($a$)(7$ points$)$ What are the values of the signals: Branch, MemRead, MemtoReg, ALUOp,

MemWrite, ALUSrc and RegWrite?

$($b$)(4$ points$)$ What are the input values of the ALU? You can use Reg$[$x$]$ to denote the value of

register x$.(11$ points$)$ Consider the execution of the machine instruction $01$ EEA$523$ hex on the single$-$cycle

processor.

$($a$)(7$ points$)$ What are the values of the signals: Branch, MemRead, MemtoReg, ALUOp,

MemWrite, ALUSrc and RegWrite?

$($b$)(4$ points$)$ What are the input values of the ALU? You can use Reg$[x]$ to denote the value of

register $x.$
