Question: 2. Given the activities whose sequence is described in the following table. Immediate Predecessor(s) Activity A Time (days) 5 B A 8 A 4 D

2. Given the activities whose sequence is

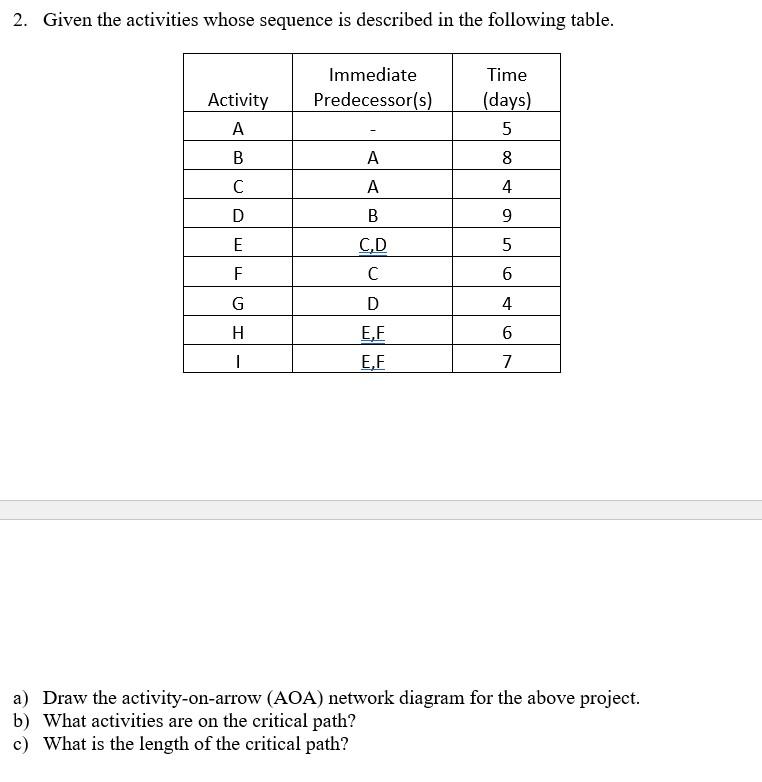

2. Given the activities whose sequence is described in the following table. Immediate Predecessor(s) Activity A Time (days) 5 B A 8 A 4 D B 9 E C.D 5 F 6 G D 4 H 6 E.E E.F 1 7 a) Draw the activity-on-arrow (AOA) network diagram for the above project. b) What activities are on the critical path? c) What is the length of the critical path

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Given the activities whose sequence is described by the following table: Immediate Predecessor Activity Optimistic Time Most Likely Time Pessimistic Time A 2 4 6 B 5 7 9 A 1 4 7 D B 7 8 E CD 4 7 10 F...

2. Given the activities whose sequence is described in the following table. Immediate Predecessor(s) Activity A Time (days) 5 B A 8 A 4 D B 9 E C.D 5 F 6 G D 4 H 6 E.E E.F 1 7 a) Draw the...

You must show your work on your submission in order to receive credit! #3.6 Given the activities whose sequence is described by the following table, draw the appropriate activity- on-arrow (AOA)...

OPERATIONS MANAGEMENT AND OPERATIONS RESEARCH QUESTION 1 Draw the activity-on-node (AON) project network associated with the following activities for Ewoenam's consulting company project. How long...

it has to he answered with the actual diagram 1- Given the activities whose sequence is described by the following table, draw the appropriate activity on arrow (AOA) net work diagram. a) Which...

94 PART 1 INTRODUCTION TO OPERATIONS MA associated with the following activities for Carl Betterton's 3.5 Draw the activity-on-node (AON) project network construction project. How long should it take...

Problem 1: Suppose I add an Activity J, with Completion Time = 7 and Immediate Predecessor I. How long will the Project now take to complete? 25 days 30 days 32 days 18 days 94 3.5 Draw the...

Given the activities whose sequence is described by the following table: Using the appropriate PERT diagram: 1 . Calculate the expected time for Activity D 2. What is the EF time for Activity F 3....

Given the activities whose sequence is described by the following table: Activity Immediate Predecessor Optimistic Time Most Likely Time Pessimistic Time A -- 3 5 13 B -- 2 7 12 C A 4 7 10 D B 4 4 10...

Q1) Given the activities whose sequence is described by the following table i) Draw a neat AoA network diagram. ii) Determine ES, LS, LF and Slack time (S) for all activities. iii) Identify the...
