Question: 2. LAN technologies - Virtual LANs. (10%) (1) What is a VLAN? What is the benefit of using the VLAN segmentation? (2) Refer to the

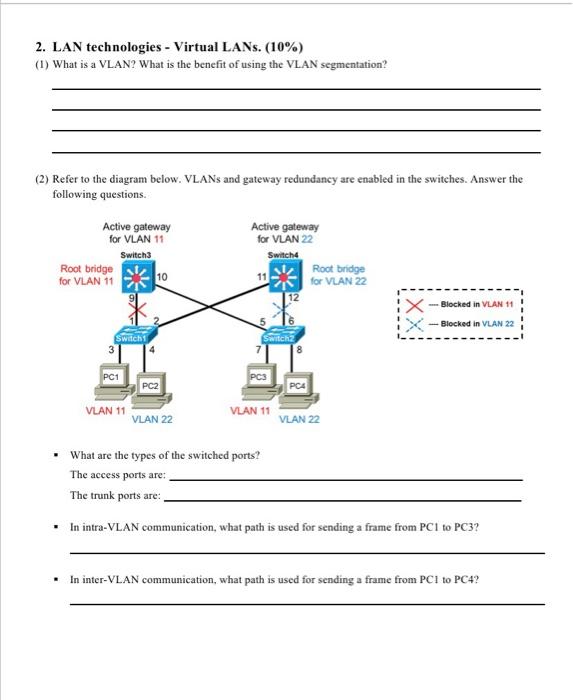

2. LAN technologies - Virtual LANs. (10%) (1) What is a VLAN? What is the benefit of using the VLAN segmentation? (2) Refer to the diagram below. VLANs and gateway redundancy are enabled in the switches. Answer the following questions Active gateway for VLAN 11 Switch Root bridge 10 for VLAN 11 Active gateway for VLAN 22 Switch Root bridge 11 for VLAN 22 X-Blocked in VLAN 11 - Blocked in VLAN 22 Switchi Switch PC1 PCS PC2 PCA VLAN 11 VLAN 22 VLAN 11 VLAN 22 What are the types of the switched ports? The access ports are: The trunk ports are: In intra-VLAN communication, what path is used for sending a frame from PCI to PC3? In inter-VLAN communication, what path is used for sending a frame from PCI to PC4
