Question: 3 - 2 9 E . For the hydraulic system of Figure 3 - 3 7 , what would be the pressure at the pump

3 - 29

.

For the hydraulic system of Figure

3 - 37,

what would be the pressure at the pump inlet if the reservoir were located below the pump so that the oil level were

4

ft below the pump inlet? The specific gravity of the oil is

0.90 .

Ignore frictional losses and changes in kinetic energy. What effect would frictional losses and changes in kinetic energy have on the pressure at the pump inlet? Why? Would this increase or decrease the chances for having pump cavitation? Why?

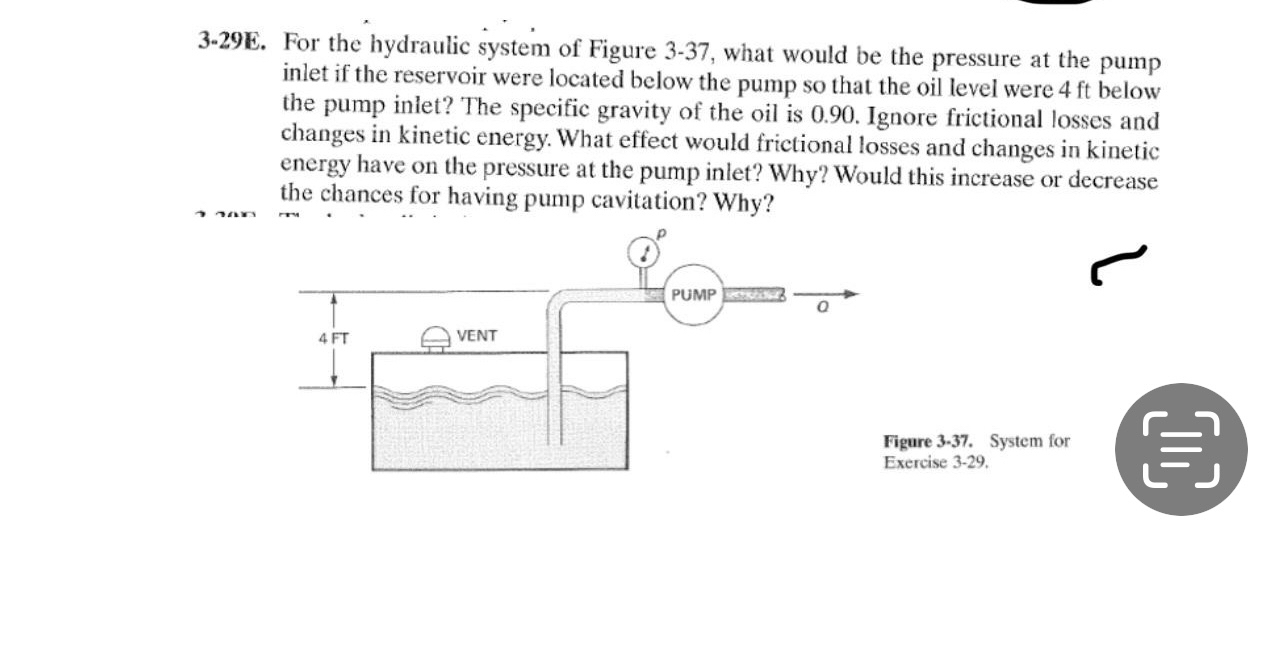

Figure

3 - 37 .

System for Exercise

3 - 29 .

3 - 2 9 E . For the hydraulic system of Figure 3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
