Question: 3. 3 Activity A Preceding activity Duration (weeks) 5 4 6 B A C D A B, C BD S E 7 a. Draw an

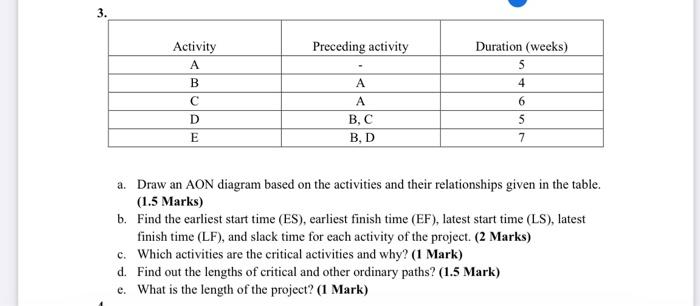

3. 3 Activity A Preceding activity Duration (weeks) 5 4 6 B A C D A B, C BD S E 7 a. Draw an AON diagram based on the activities and their relationships given in the table. (1.5 Marks) b. Find the earliest start time (ES), earliest finish time (EF), latest start time (LS), latest finish time (LF), and slack time for each activity of the project. (2 Marks) c. Which activities are the critical activities and why? (1 Mark) d. Find out the lengths of critical and other ordinary paths? (1.5 Mark) e. What is the length of the project? (1 Mark)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

a) 1) You are the manager of a project, with the following details below: a) Draw an Activity-On-Node (AON) of these activities b) Identify the critical path c) What is the estimated project duration...

Draw an AON diagram based on the activities and their relationships given in the table. (1.5 Marks) Find the earliest start time (ES), earliest finish time (EF), latest start time (LS), latest finish...

Activity Description Immediate Predecessor Activity Time : T (in days) A 5 A 6 B A 8 D B 12 E B 20 F Plant specifications study environmental impact study Engineering study Demolition, remodeling,...

Activity A B D E F G Duration (weeks) 5 4 6 4 Predecessors None None A B, C D D E, F 4 8 5 a) Draw a network diagram: b) Identify all of the paths and their lengths: c) What is the critical path? d)...

A project's activities must be completed in the sequence indicated below. Activity Immediately Preceding Activity Duration in Weeks A - 3 B - 20 C - 15 D - 10 E - 5 F A 4 G D 3 H D, E 10 I F 3 J B 10...

Problem 17-13 (Static) The following is a list of activity times for a project, as well as crashing costs for its activities. Determine which activities should be crashed and the total cost of...

A project manager has compiled a list of major activities that will be required to install a computer information system in her firm. The list includes estimated completion times for activities and...

Use the scenario below to answer questions 2 - 7 Activity Predecessors A Duration (weeks) 5 B 6 C A 4 D A 3 E A 1 F E 4 G 14 H DF , GH 12 1 2 5. What is the project's expected completion date? A. 20...

Consider the following data for a project never before attempted by your company: Activity A Expected Time te (weeks) 5 Immediate Predecessor(s) B 2 3 D 5 B E 3 C D F D a. Draw the network diagram...

The following information is known about a project to upgrade a point-of-sale system at Kids and Tots Apparel Activity Activity Time (days) Immediate Predecessor(s) D E F G 7 5 3 5 4 6 5 B, C D mm a....
