Question: 3) Use the values below in the table to undertake the following: a) Calculate the activity durations. b) Draw the network diagramme. c) Which path

3) Use the values below in the table to undertake

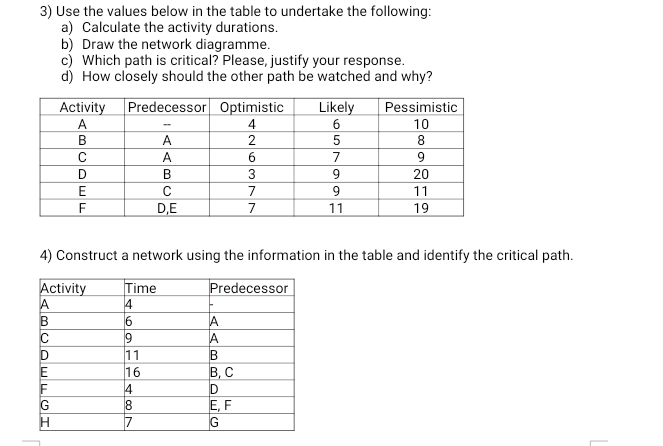

3) Use the values below in the table to undertake the following: a) Calculate the activity durations. b) Draw the network diagramme. c) Which path is critical? Please, justify your response. d) How closely should the other path be watched and why? Activity A B D E F Predecessor Optimistic 4 A 2 A 6 B 3 7 DE 7 Likely 6 5 7 9 9 11 Pessimistic 10 8 9 20 11 19 4) Construct a network using the information in the table and identify the critical path. Predecessor Activity B D E F G H Time 4 6 9 11 16 4 8 7 A A B B, C D E, F G
