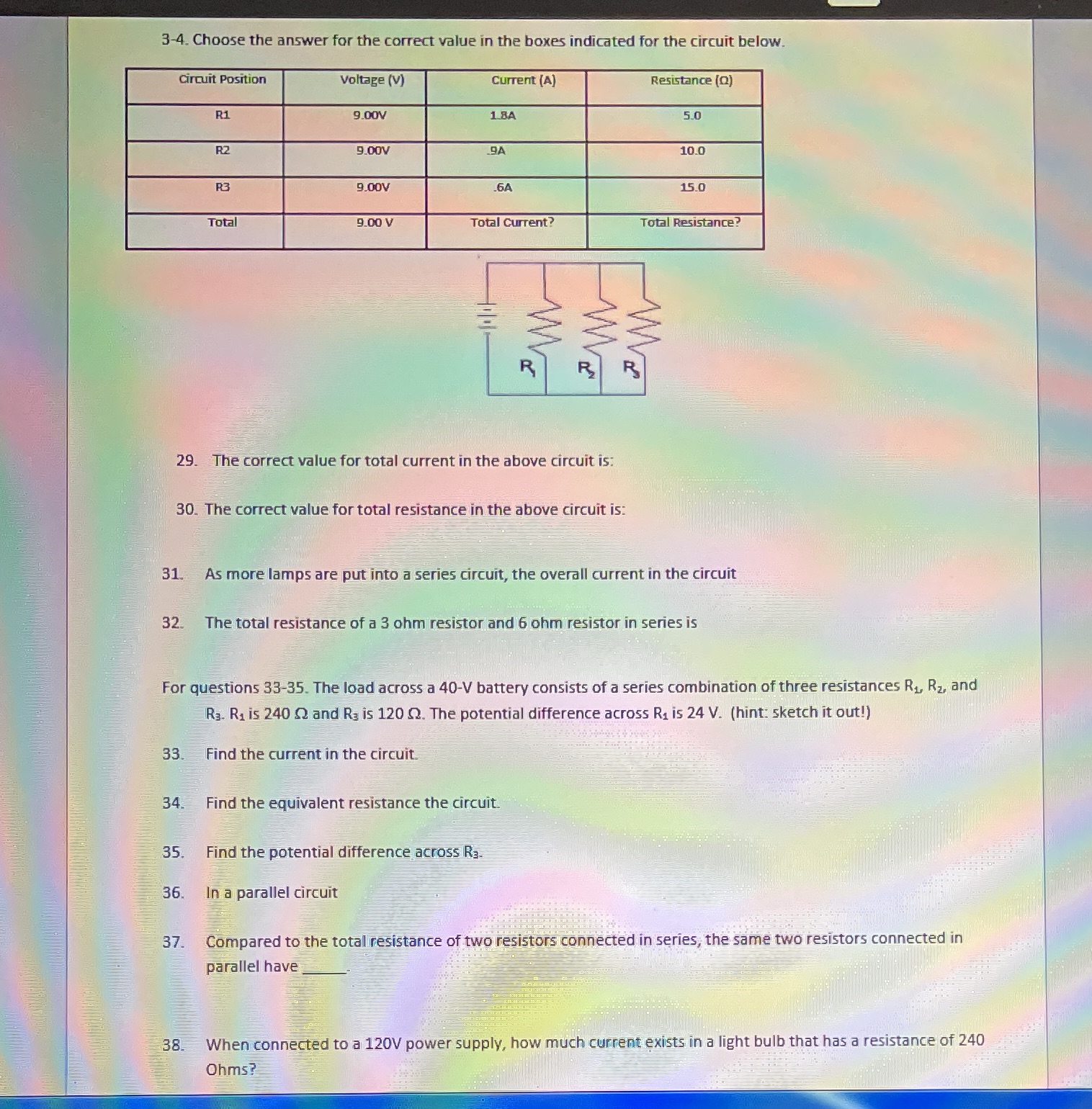

3-4. Choose the answer for the correct value in the boxes indicated for the circuit below. Circuit Position Voltage (v) Current (A) Resistance (Q) R1 9.00V 1 8A 5.0 RZ 9.00V 9A 10.0 P3 9.00V 6A 15.0 Total 9.00 V Total Current? Total Resistance? R R 29. The correct value for total current in the above circuit is: 30. The correct value for total resistance in the above circuit is: 31. As more lamps are put into a series circuit, the overall current in the circuit 32. The total resistance of a 3 ohm resistor and 6 ohm resistor in series is For questions 33-35. The load across a 40-V battery consists of a series combination of three resistances Ry, Rz and R3. R, is 240 $2 and Ra is 120 0. The potential difference across R, is 24 V. (hint: sketch it out!) 33. Find the current in the circuit. 34. Find the equivalent resistance the circuit. 35. Find the potential difference across Ra. 36. In a parallel circuit 37. Compared to the total resistance of two resistors connected in series, the same two resistors connected in parallel have 38. When connected to a 120V power supply, how much current exists in a light bulb that has a resistance of 240 Ohms
