Question: 4 . [ 2 0 p ] . A stepped flat bar with a central hole of 1 diameter in the in the 4

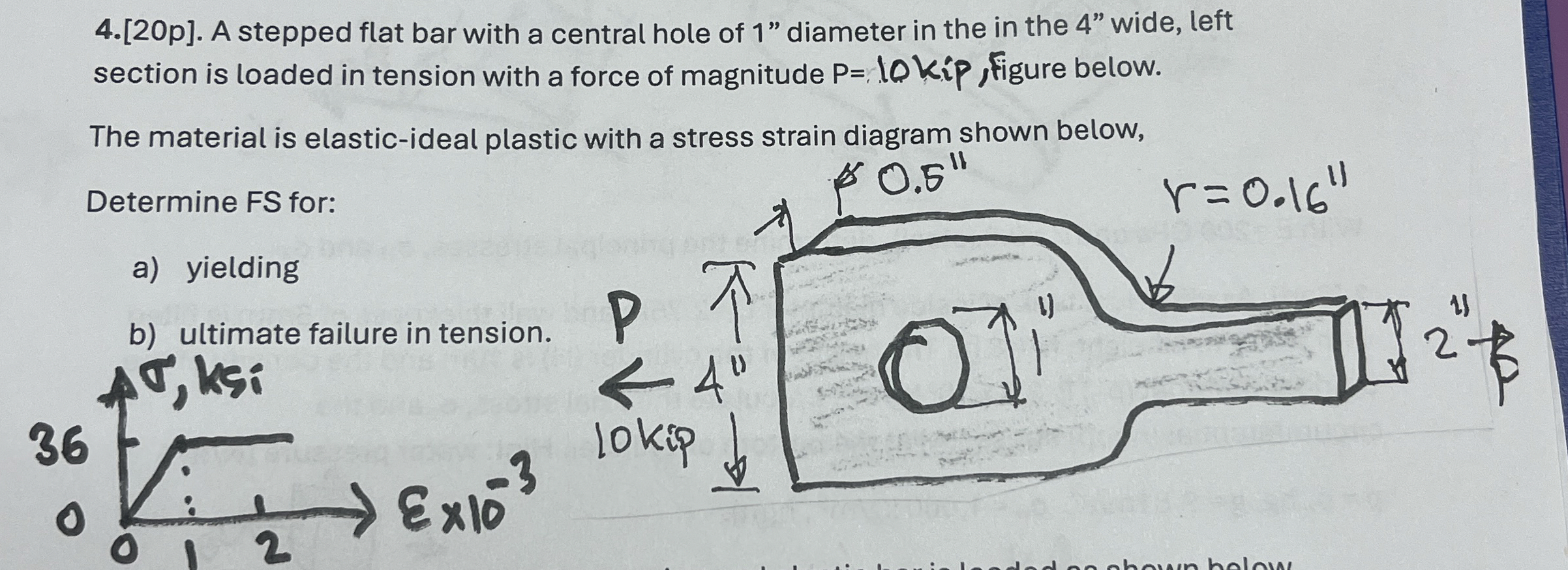

4.[20p]. A stepped flat bar with a central hole of 1" diameter in the in the 4" wide, left section is loaded in tension with a force of magnitude P=10 Kip, figure below.
The material is elastic-ideal plastic with a stress strain diagram shown below, Determine FS for:
a) yielding
4 . [ 2 0 p ] . A stepped flat bar with a central

Step by Step Solution
