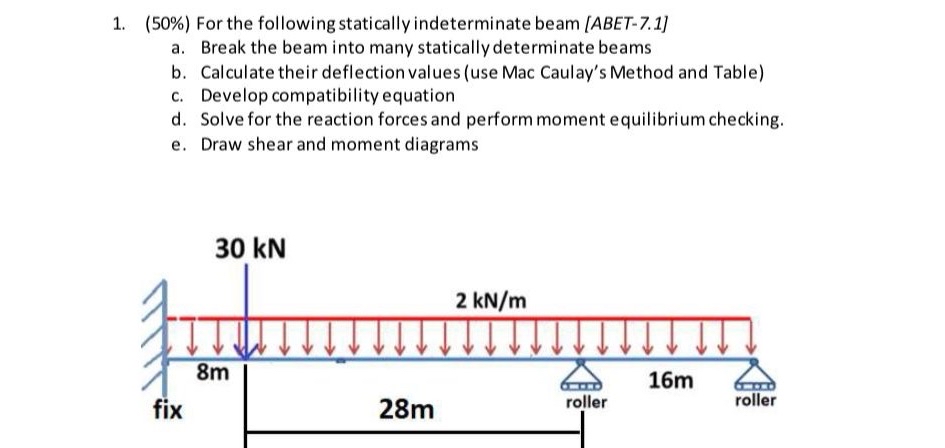

Question: ( 5 0 % ) For the following statically indeterminate beam [ ABET - 7 . 1 ] a . Break the beam into many

(50%) For the following statically indeterminate beam [ABET-7.1]
a. Break the beam into many statically determinate beams
b. Calculate their deflection values (use Mac Caulay's Method and Table)
c. Develop compatibility equation
d. Solve for the reaction forces and perform moment equilibrium checking.
e. Draw shear and moment diagrams
( 5 0 % ) For the following statically

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
