Question: 5 . 8 Design Problem: a . Design an inverting amplifier with a gain of 2 . 5 , using an ideal op - amp.

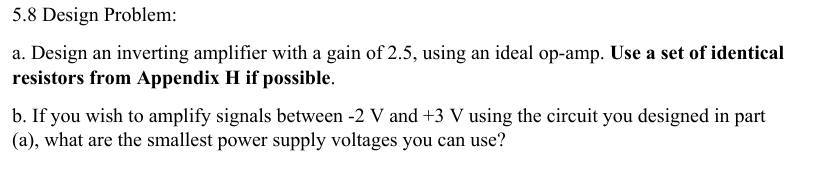

5.8 Design Problem:
a. Design an inverting amplifier with a gain of 2.5, using an ideal op-amp. Use a set of identical resistors from Appendix H if possible.
b. If you wish to amplify signals between -2 V and +3 V using the circuit you designed in part (a), what are the smallest power supply voltages you can use?
5 . 8 Design Problem: a . Design an inverting

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
