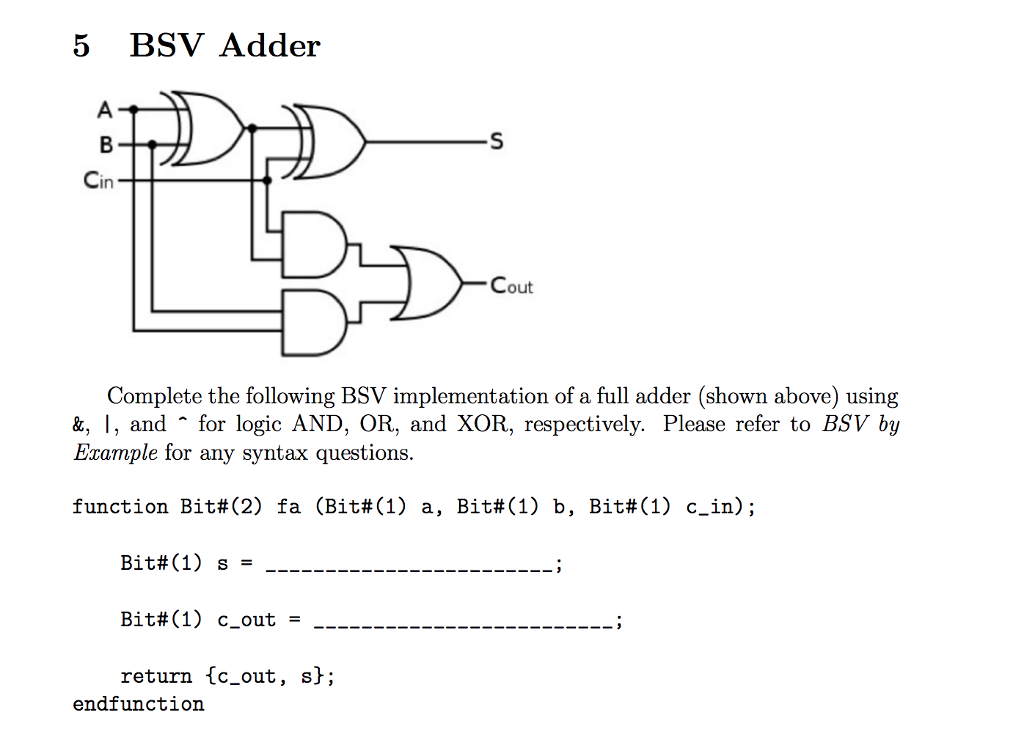

Question: 5 BSV Adder Cin Cout Complete the following BSV implementation of a full adder (shown above) using &, I, and for logic AND, OR, and

5 BSV Adder Cin Cout Complete the following BSV implementation of

5 BSV Adder Cin Cout Complete the following BSV implementation of a full adder (shown above) using &, I, and for logic AND, OR, and XOR, respectively. Please refer to BSV by Example for any syntax questions function Bit# (2) fa (Bit#(1) a, Bit# (1) b, Bit4(1) c-in); Bit# (1) s = Bit# (1) c-out- return c_out, s; endfunction
