Question: 5. When a program starts, the first instruction is fetched from instruction memory location Ox00801234. Assume the data memory is all zeros and that the

5. When a program starts, the first instruction is fetched from instruction memory location Ox00801234. Assume the data memory is all zeros and

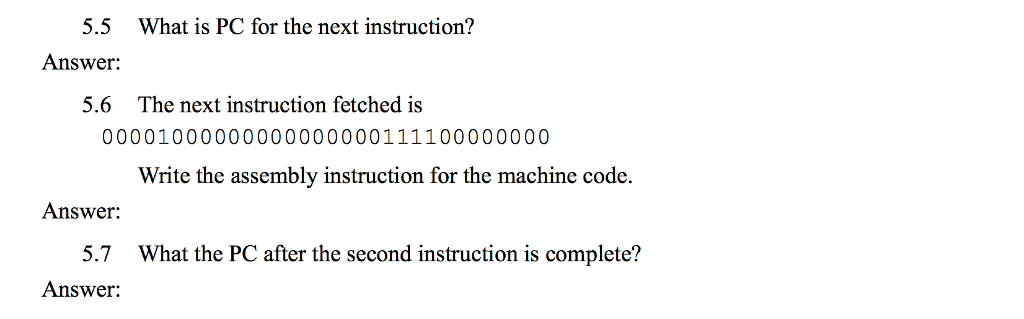

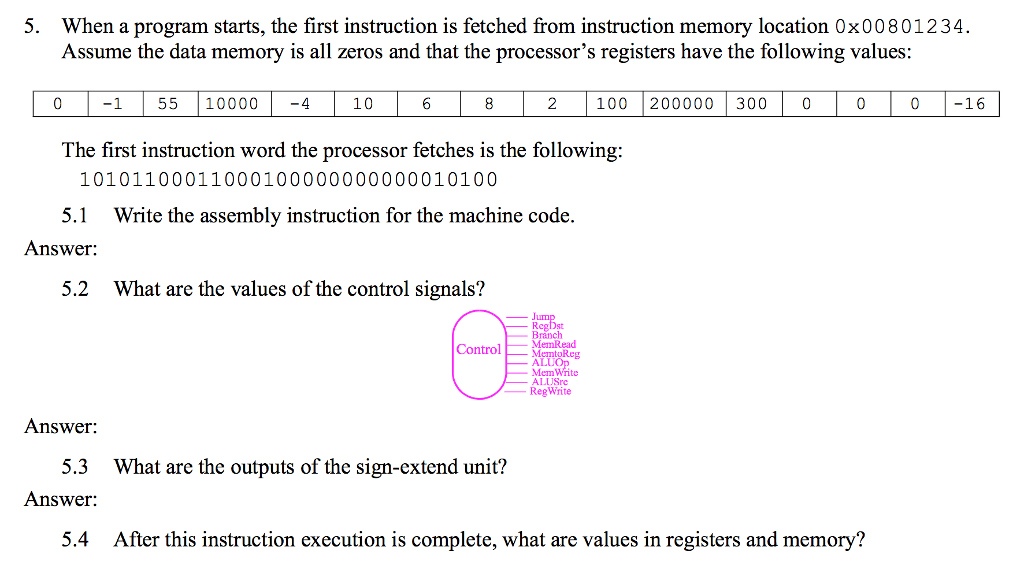

5. When a program starts, the first instruction is fetched from instruction memory location Ox00801234. Assume the data memory is all zeros and that the processor's registers have the following values 1 55 10000 10 2 100 200000 3000 16 The first instruction word the processor fetches is the following 10101100011000100000000000010100 5.1 Write the assembly instruction for the machine code. Answer: 5.2 What are the values of the control signals? Rc Branch ControlMemoead Memvite ALUSrc RegWrite Answer: 5.3 What are the outputs of the sign-extend unit? Answer: 5.4 After this instruction execution is complete, what are values in registers and memory? 5. When a program starts, the first instruction is fetched from instruction memory location Ox00801234. Assume the data memory is all zeros and that the processor's registers have the following values 1 55 10000 10 2 100 200000 3000 16 The first instruction word the processor fetches is the following 10101100011000100000000000010100 5.1 Write the assembly instruction for the machine code. Answer: 5.2 What are the values of the control signals? Rc Branch ControlMemoead Memvite ALUSrc RegWrite Answer: 5.3 What are the outputs of the sign-extend unit? Answer: 5.4 After this instruction execution is complete, what are values in registers and memory

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
