Question: 6. Given the task list below create a network chart. (30 points) Task Task Duration Predecessor a 5 b 7 4 Paths Path Duration Path

6. Given the task list below create a network

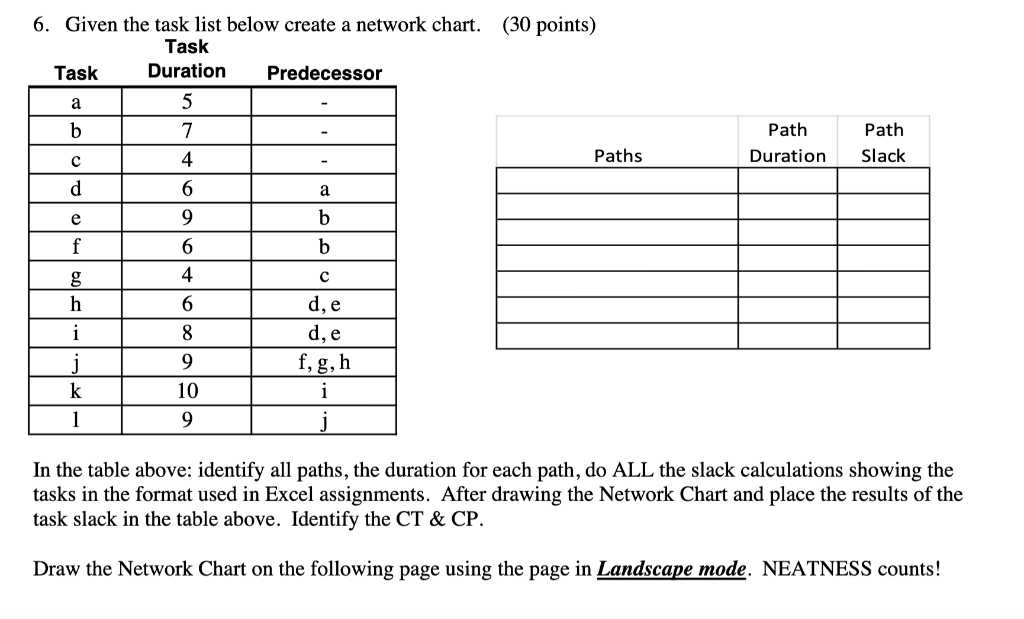

6. Given the task list below create a network chart. (30 points) Task Task Duration Predecessor a 5 b 7 4 Paths Path Duration Path Slack d a 6 9 e b f 6 b 4 g h i 6 8 de de f, g, h i 9 j k 10 1 9 In the table above: identify all paths, the duration for each path, do ALL the slack calculations showing the tasks in the format used in Excel assignments. After drawing the Network Chart and place the results of the task slack in the table above. Identify the CT & CP. Draw the Network Chart on the following page using the page in Landscape mode. NEATNESS counts

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
