Question: 9 . 1 9 An 8 . 0 - in . - diameter elbow meter has a coefficient C = 0 . 7 5 when

9.19 An 8.0-in.-diameter elbow meter has a coefficient C=0.75 when installed in a water line. The meter is connected to a mercury manometer having a 24-in. scale that is graduated in units of 0.05 in.
(a) Determine the sensitivity of the instrument in terms of cubic feet per second and inches of nereury.
(b) When h=20.0 inches of mercury, what is the change in volume flow rate Q corresponding to a scale reading error of 0.10 in.?
(c) How significant is the 0.10- in. reading error when h=4.0 in.?

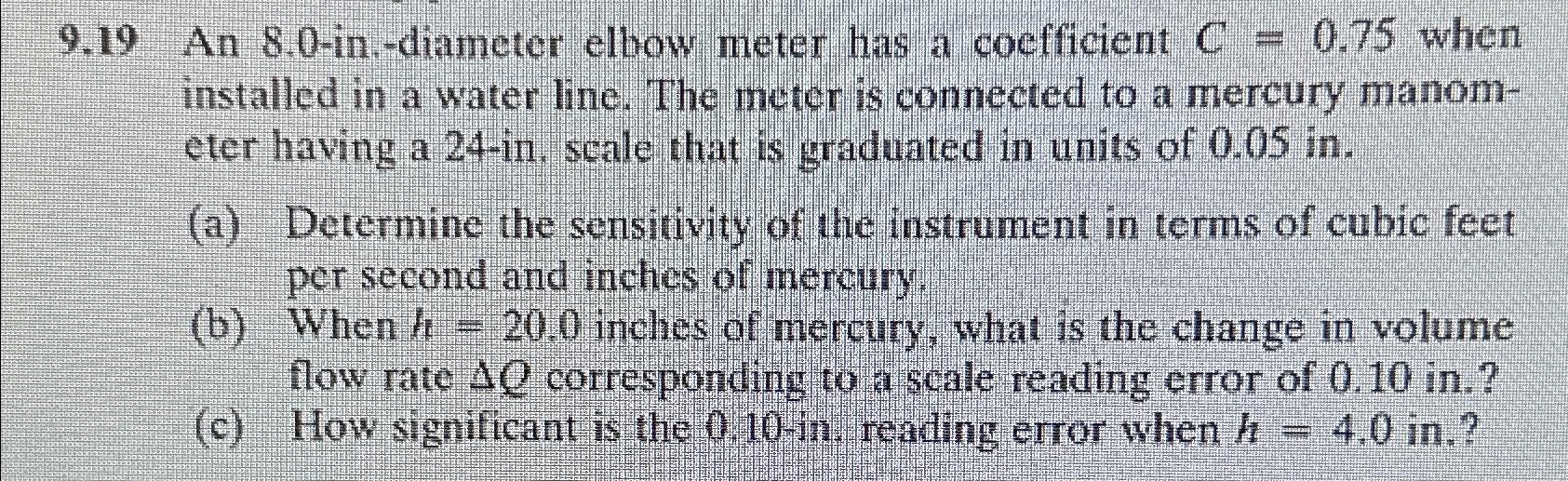

 9.19 An 8.0-in.-diameter elbow meter has a coefficient C=0.75 when installed
