Question: A brass pipe having the cross section shown has an axial load P applied 5 mm from its geometric axis. The horizontal deflection at the

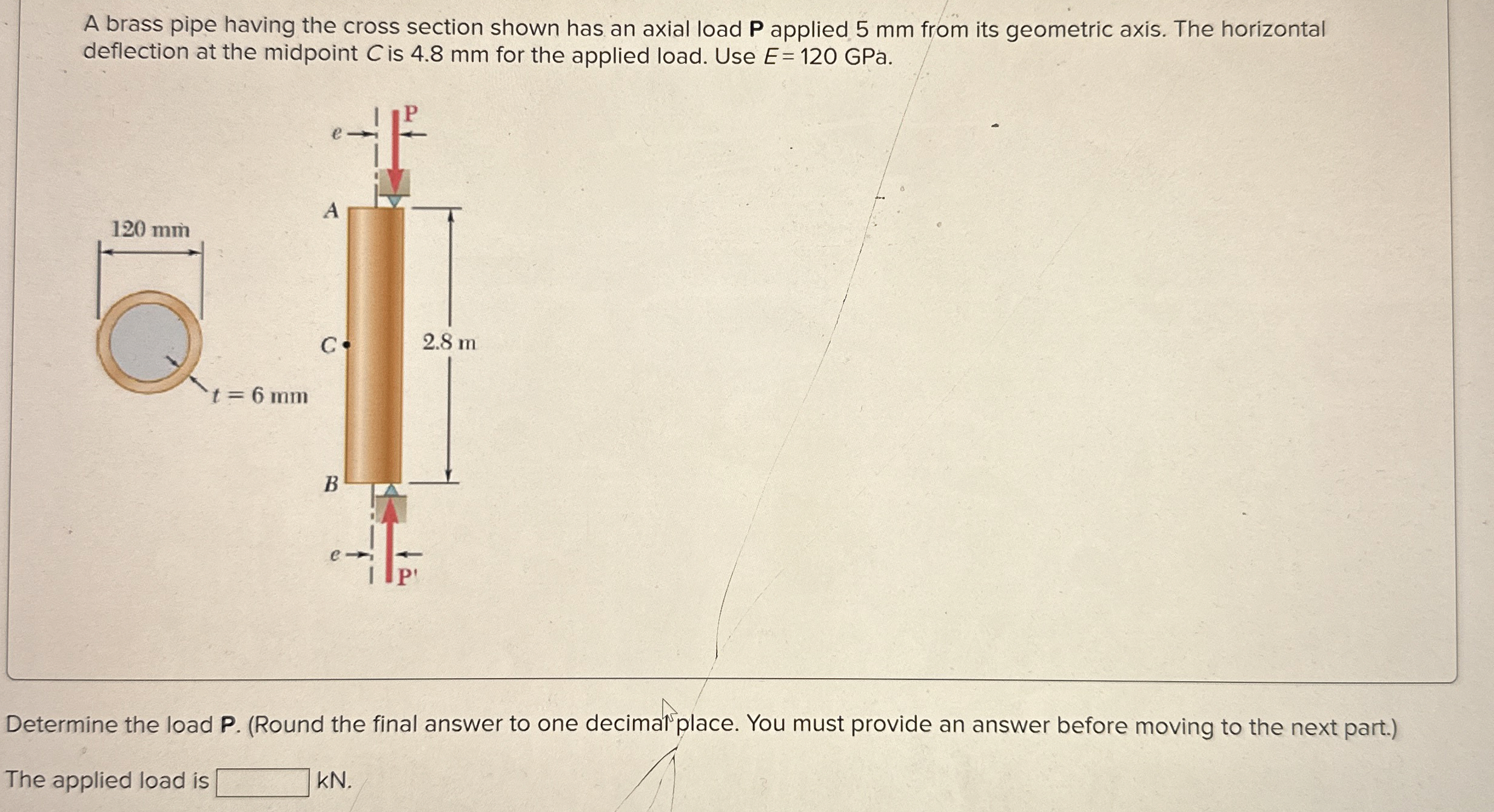

A brass pipe having the cross section shown has an axial load P applied 5 mm from its geometric axis. The horizontal deflection at the midpoint C is 4.8 mm for the applied load. Use E=120GPa.
Determine the load P.(Round the final answer to one decimas'place. You must provide an answer before moving to the next part.)
The applied load is kN.
A brass pipe having the cross section shown has

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
