Question: A certain FSM is implemented using JK flip - flops. The machine has state variables Q 2 , Q 1 and Q 0 , an

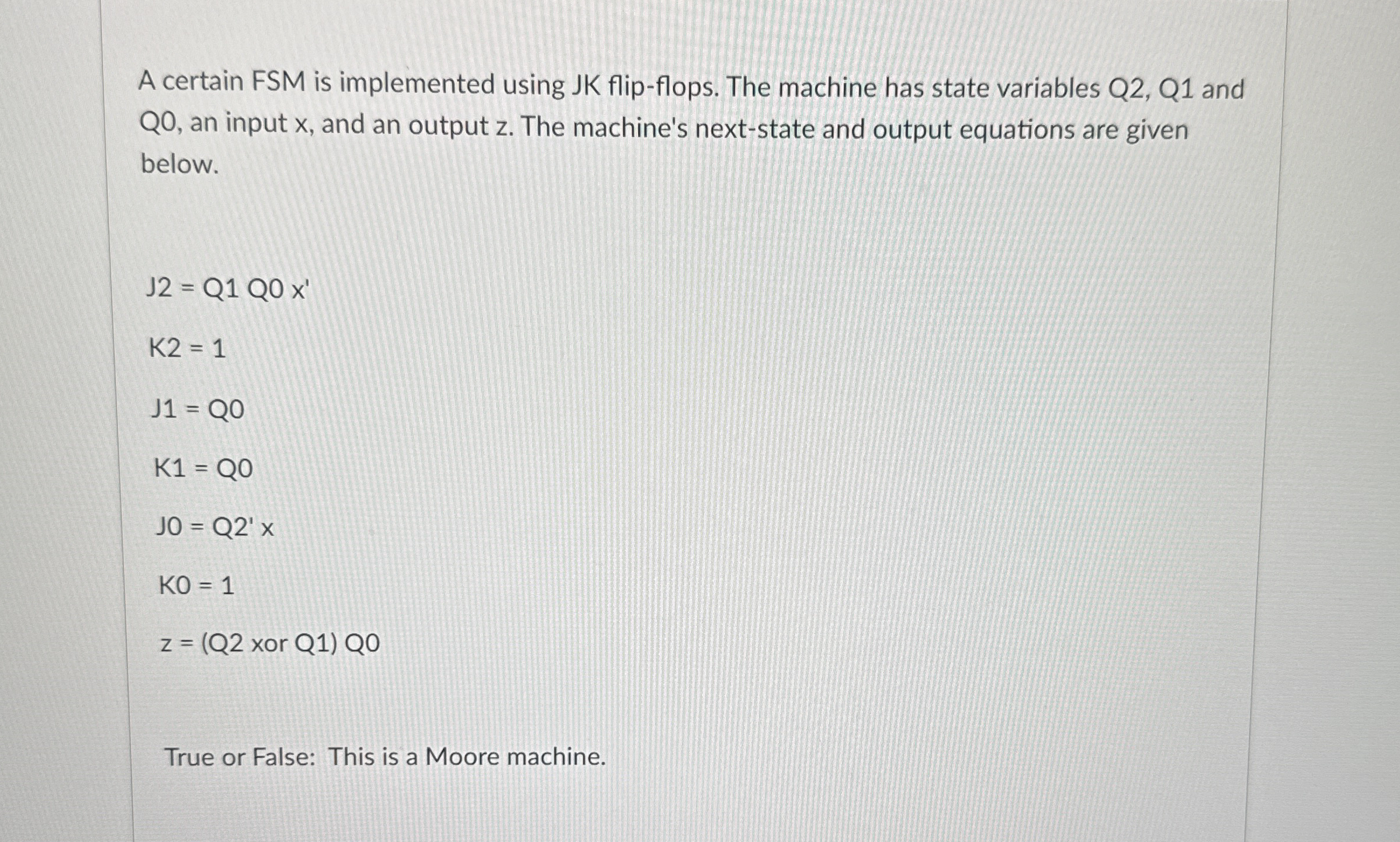

A certain FSM is implemented using JK flip-flops. The machine has state variables Q2, Q1 and Q0, an input x , and an output z . The machine's next-state and output equations are given below.
J2=Q1Q0x'
K2=1
J1=Q0
K1=Q0
JO=Q'x
KO=1
z=(Q2@Q1)Q0
True or False: This is a Moore machine.
