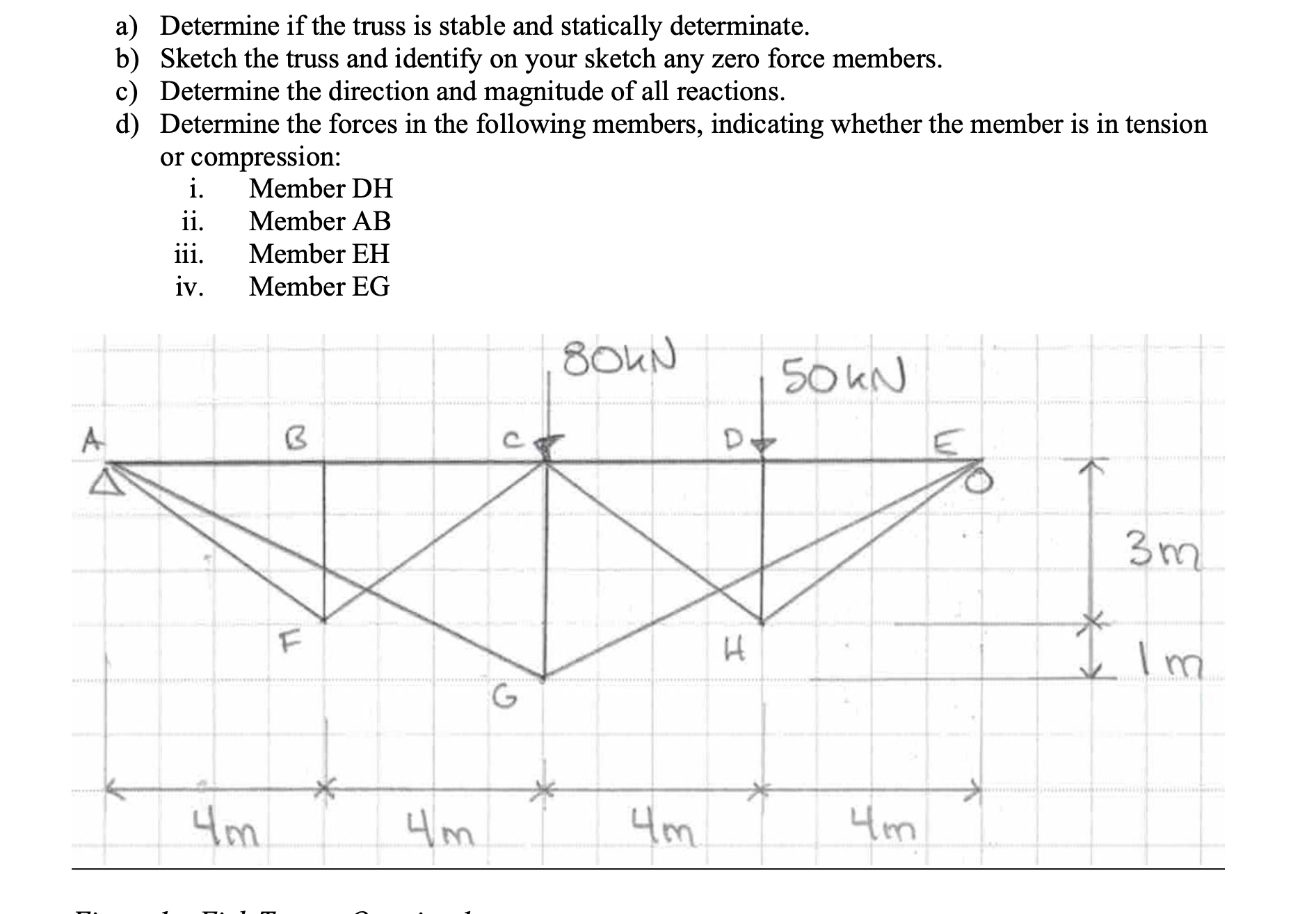

Question: a ) Determine if the truss is stable and statically determinate. b ) Sketch the truss and identify on your sketch any zero force members.

a) Determine if the truss is stable and statically determinate.
b) Sketch the truss and identify on your sketch any zero force members.
c) Determine the direction and magnitude of all reactions.
d) Determine the forces in the following members, indicating whether the member is in tension or compression:
i. Member DH
ii. Member AB
iii. Member EH
iv. Member EG
a ) Determine if the truss is stable and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
