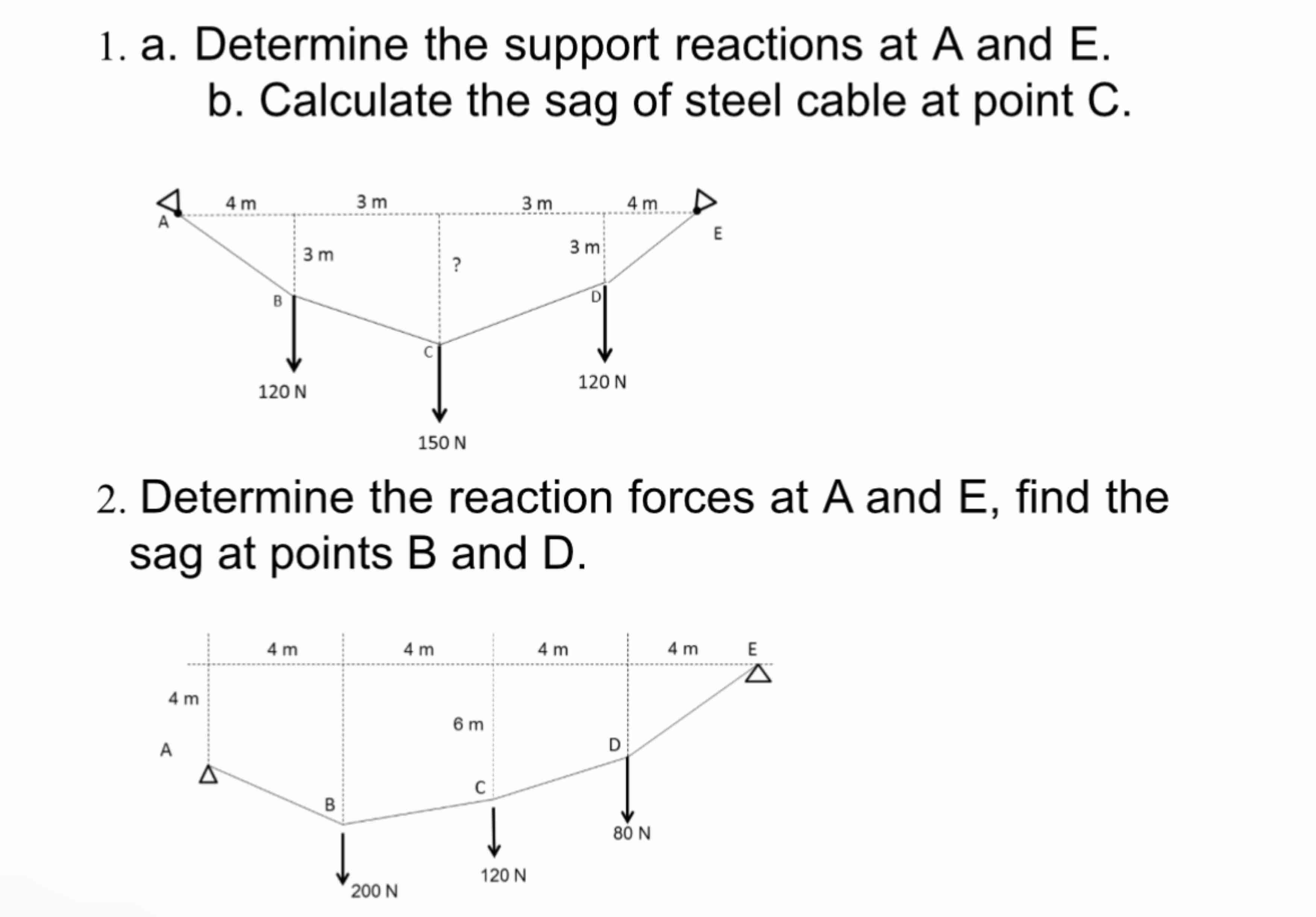

Question: a . Determine the support reactions at A and E . b . Calculate the sag of steel cable at point C . Determine the

a. Determine the support reactions at A and E.
b. Calculate the sag of steel cable at point C.
Determine the reaction forces at A and E, find the
sag at points B and D.
a . Determine the support reactions at A and E .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
