Question: A discrete PID controller is used to set the speed of a motor. The set point for the motor, as neasured by the speed sensor

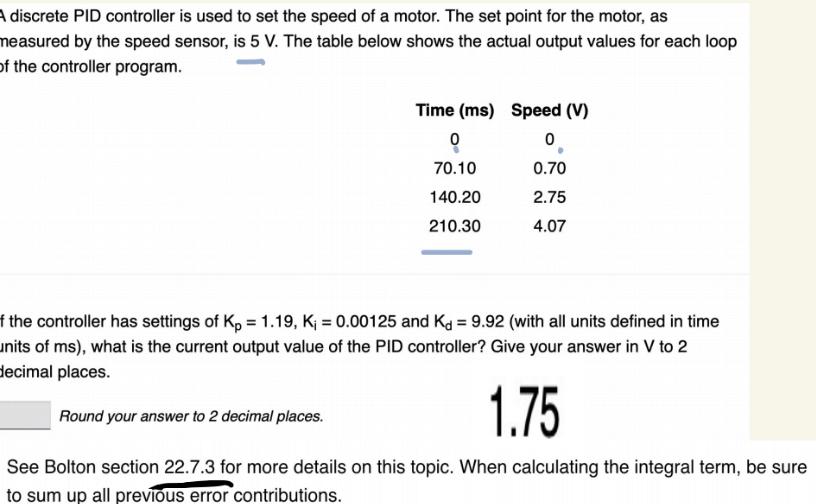

A discrete PID controller is used to set the speed of a motor. The set point for the motor, as neasured by the speed sensor, is 5V. The table below shows the actual output values for each loop f the controller program.
\table[[Time (ms),Speed (V)],[0,0],[70.10,0.70],[140.20,2.75],[210.30,4.07]]
f the controller has settings of Kp=1.19,Ki=0.00125 and Kd=9.92(with all units defined in time units of ms), what is the current output value of the PID controller? Give your answer in V to 2 lecimal places.
Round your answer to 2 decimal places.
1.75
See Bolton section 22.7.3 for more details on this topic. When calculating the integral term, be sure to sum up all previous error contributions.
