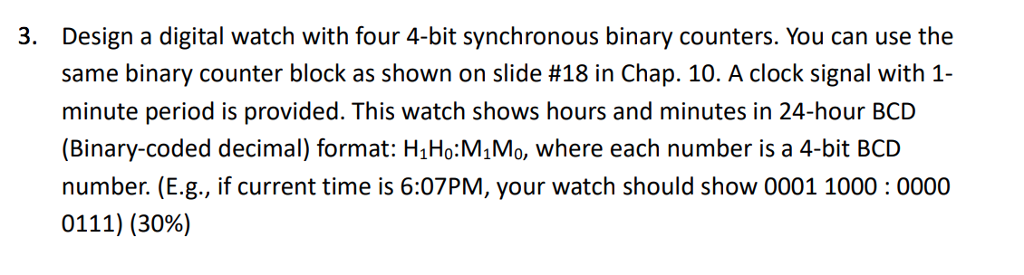

Question: A example single digit BCD counter designed with binary counter with a clear signal Notice that the counter is cleared after a value of 9

A example single digit BCD counter designed with binary counter with a clear signal Notice that the counter is cleared after a value

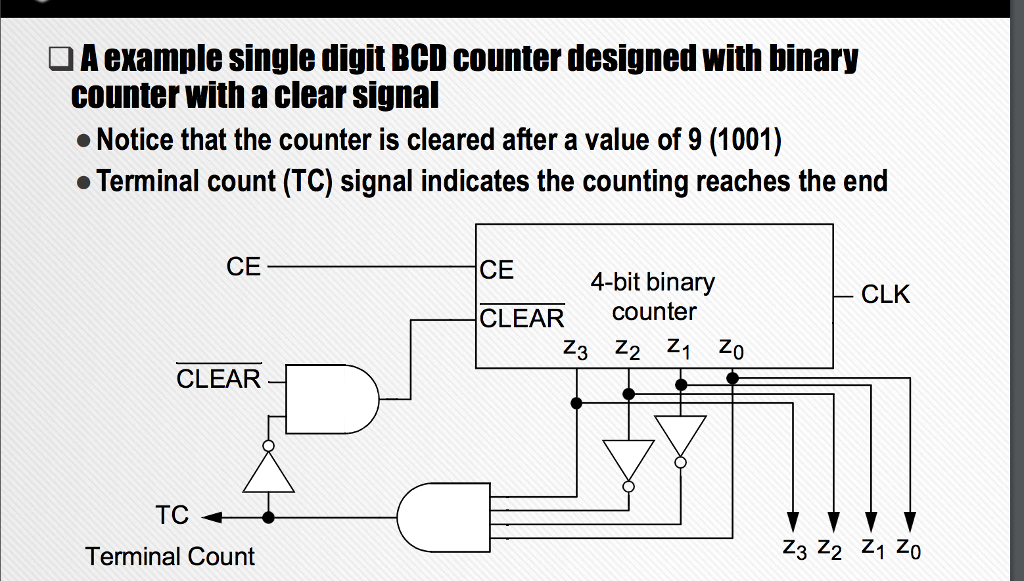

A example single digit BCD counter designed with binary counter with a clear signal Notice that the counter is cleared after a value of 9 (1001) . Terminal count (TC) signal indicates the counting reaches the end CE CE 4-bit binary CLK CLEAR counter CLEAR TC Terminal Count

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
