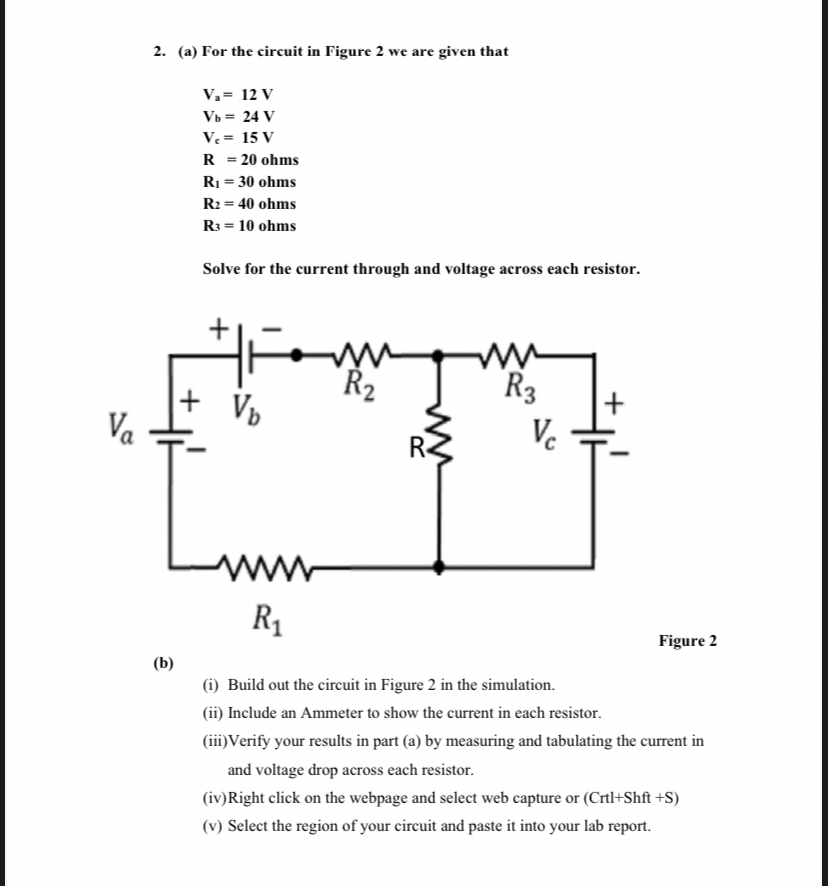

$($a$)$ For the circuit in Figure $2$ we are given that

$V_a=12V$

$V_b=24V$

$V_c=15V$

$R=20$ohms

$R_1=30$ohms

$R_2=40$ohms

$R_3=10$ohms

Solve for the current through and voltage across each resistor.

$*1$

Figure $2$

$($b$)$

$($i$)$ Build out the circuit in Figure $2$ in the simulation.

$($ii$)$ Include an Ammeter to show the current in each resistor.

$($iii$)$Verify your results in part $($a$)$ by measuring and tabulating the current in and voltage drop across each resistor.

$($iv$)$Right click on the webpage and select web capture or $(Crtl+Shft+S)$

$($v$)$ Select the region of your circuit and paste it into your lab report.
