Question: A PERT diagram for a project is given below: A=12 B=3 C=9 D=17 E=11 Assume that activity times of Start and End are zero. Activity

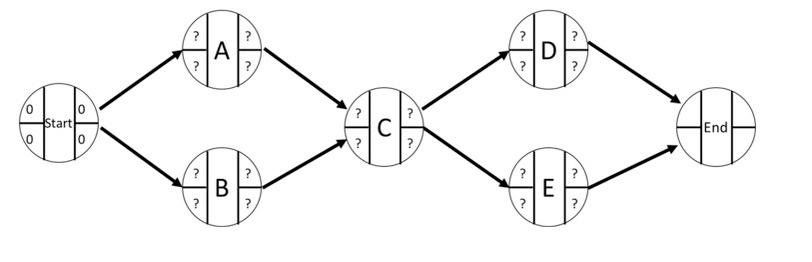

A PERT diagram for a project is given below:

A PERT diagram for a project is given below: A=12

A=12

B=3

C=9

D=17

E=11 Assume that activity times of Start and End are zero. Activity times for each activity is given in the data table below. a. Calculate each ? in the PERT diagram. (20 ?s, 0.3 pts each, 6 pts total) b. Determine the critical path.(1 pts)

A Start HD End ? -- B E
