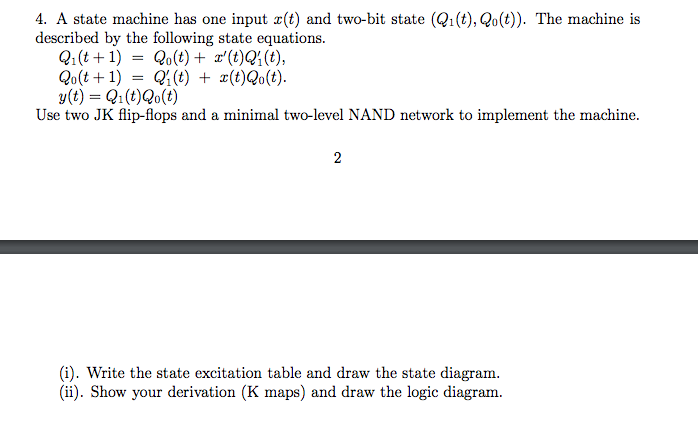

A state machine has one input x(t) and two-bit state (Qi(t),Qo(0)' The machine is described by the following state equations. Use two JK flip-flops and a minimal two-level NAND network to implement the machine. Write the state excitation table and draw the state diagram. Show your derivation (K maps) and draw the logic diagram. A state machine has one input x(t) and two-bit state (Qi(t),Qo(0)' The machine is described by the following state equations. Use two JK flip-flops and a minimal two-level NAND network to implement the machine. Write the state excitation table and draw the state diagram. Show your derivation (K maps) and draw the logic diagram
