Question: a . What Root Locus plot is used for in control problems? Consider a unity feedback system with the loop transfer function G ( s

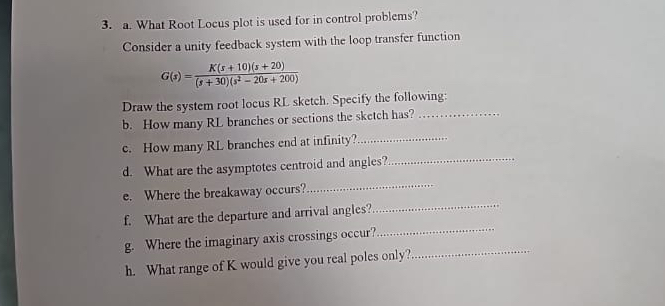

a. What Root Locus plot is used for in control problems?
Consider a unity feedback system with the loop transfer function
G(s)=K(s+10)(s+20)(s+30)(s2-20s+200)
Draw the system root locus RL sketch. Specify the following:
b. How many RL branches or sections the sketch has?
c. How many RL branches end at infinity?. q,
d. What are the asymptotes centroid and angles? q,
e. Where the breakaway occurs?. q,
f. What are the departure and arrival angles?.. q,
g. Where the imaginary axis crossings occur? q,
h. What range of K would give you real poles only?... q,
a . What Root Locus plot is used for in control

Step by Step Solution

There are 3 Steps involved in it
