Question: ( a ) Write the state - space equations for the plant, with input u ( t ) and output y ( t ) .

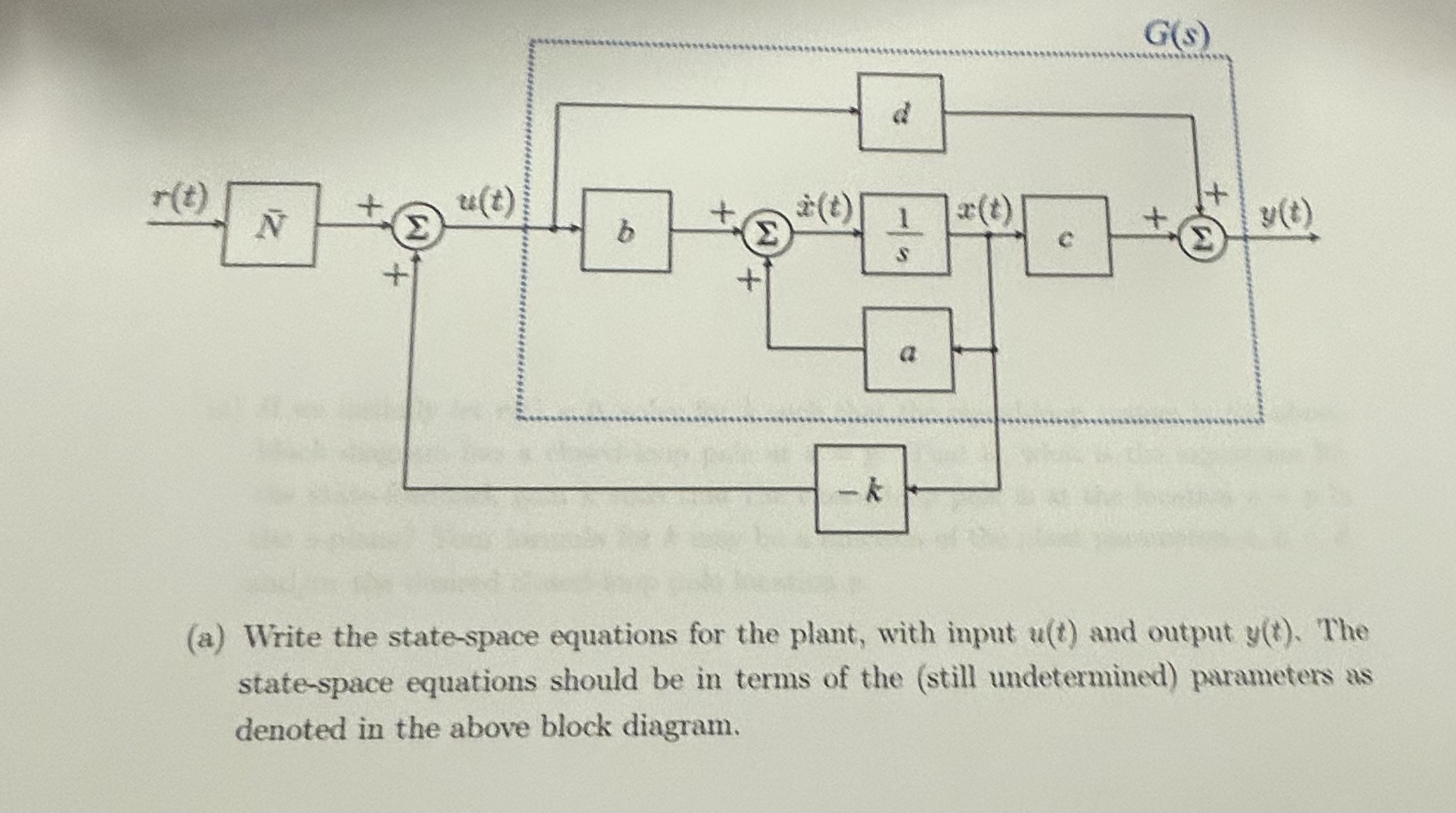

(a) Write the state-space equations for the plant, with input u(t) and output y(t). The state-space equations should be in terms of the (still undetermined) parameters as denoted in the above block diagram. (b) Then compute the transfer function G(s)=Y(s)/U(s).(c) Next if we set (t)=0, solve for k so that the closed loop system has a closed loop pole at s=p.(d) niw let r(t) be non zero constant value solve for nbar so that the output y(t) in the block diagran becomes equal to r(t) in steady state. (E) what is the overall transfer function H(s) from r(t) to y(t).(F) if the plant paramrters are a=1, b=2, c=3, d=4 and the pole is p=-5 what is the state feedback gain k? And what is nbsr? And what id the transfer function?
( a ) Write the state - space equations for the
