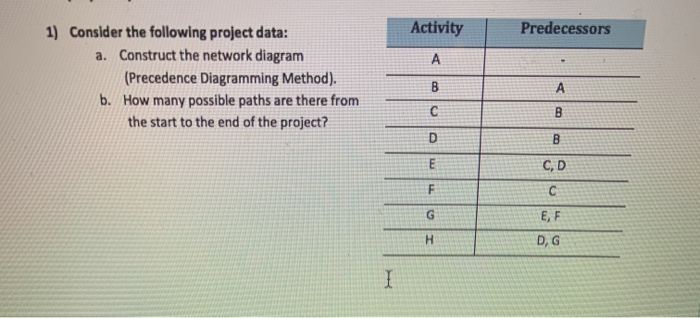

Question: Activity Predecessors 1) Consider the following project data: a. Construct the network diagram (Precedence Diagramming Method). b. How many possible paths are there from the

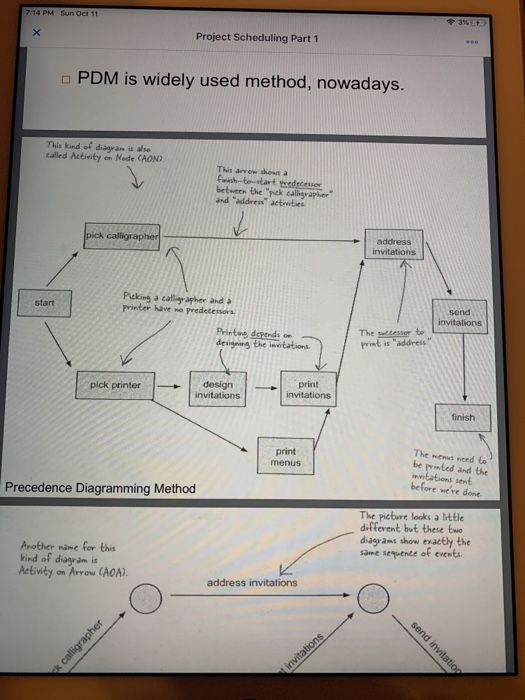

Activity Predecessors 1) Consider the following project data: a. Construct the network diagram (Precedence Diagramming Method). b. How many possible paths are there from the start to the end of the project? B B D B E CD F G E, F D, G H I 7:14 PM Sun Oct 11 Project Scheduling Part 1 PDM is widely used method, nowadays. This kind of disyan sa called Activity on Node CAON. This arrow chowa fuchbarte between the pick calligrapher and "addressactie pick calligrapher address invitations start Picking a calligrapher and a printer have no predecessors Printa depardson designing the invitations send invitations The lessor te print is address pick printer design invitations print invitations finish print menus The two weed to be printed and the mitations sent before we've done Precedence Diagramming Method The picture looks a little different but these two diagrams show exactly the Same sequence of events. Another name for this kind of diagram is Activity on Arrow (AOA). address invitations k calligrapher invitations send invitation

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
