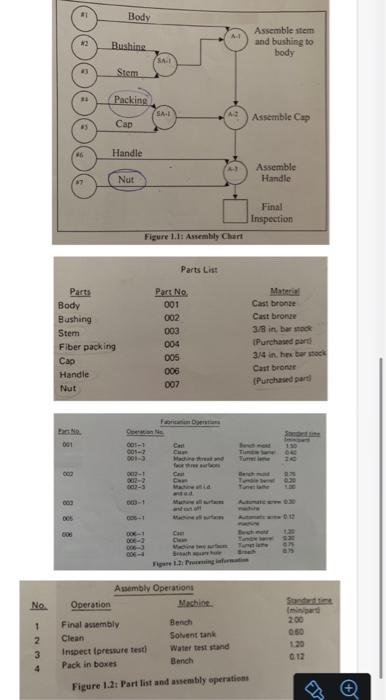

An assembly chart for a simple gate valve is given in figure 1.1, part list and assembly information for the gate valve and processing information are given in figure 1.2. The following information is also available:

a. Casting are manufactured in-house.

b. Bar stock, nuts, screws, packaging can be obtained from a local supplier.

c. The design engineer specified that body bushing and handle be made of cast bronze and the cap and stem of the valve be machined from standard brass bar stock.

d. The following need to be fabricated: the bushing, stem, cap, handle.

e. Inspection is required for all fabricated parts prior to delivery to final assembly. Construct an operation process chart, precedence diagram and rout sheets.

An assembly chart for a simple gate valve is given in figure 1.1, part list and assembly information for the gate valve and processing information are given in figure 1.2. The following information is also available: a. Casting are manufactured in-house. b. Bar stock, nuts, screws, packaging can be obtained from a local supplier. c. The design engineer specified that body bushing and handle be made of cast bronze and the cap and stem of the valve be machined from standard brass bar stock. d. The following need to be fabricated the bushing, stem, cap, handle. e. Inspection is required for all fabricated parts prior to delivery to final assembly. Construct an operation process chart, precedence diagram and rout sheets. Body Abletom and bushing to body 001 0011 001- 001 * 3 Sem 001 Packing Asemble Cup Cao A 000 Assemble Handle C od Nut Final Inspection Pure Chart Pen Body 001 Carbonar Cute NA Suede 200 000 Purch Bushing Stem Fiber packing Cap Handle Nut + 2 3 Am Operation Oration Final bly Clean Inspecteur teed Pack in boxes Figure 1.2: Partlisted by perti 005 013 007 Body Bushing Assemble stem and bushing to body Stem 11 Packing SAI 43 Assemble Cap Cap Handle Assemble Handle Nut Final Inspection Figure 1.1 Ansembly Chart Parts List Part No 001 002 Parts Body Bushing Stem Fiber packing Cap Handle Nut 003 004 005 006 007 Material Castro Cast bronne 3/8 in bar Purchased port 3.14 in heterock Cast brone Purchased part 001-1 0017 001- Cat Machine con 002-1 03-5 0031 1993 8 356 000 0021 Assembly Operations Operation Machine No 1 WN- Final assembly Clean Inspect pressure testi Pack in boxes Iminad 2.00 050 120 Solvent tank Water test stand Bench Figure 1.21 Part list and assembly operations AB An assembly chart for a simple gate valve is given in figure 1.1, part list and assembly information for the gate valve and processing information are given in figure 1.2. The following information is also available: a. Casting are manufactured in-house. b. Bar stock, nuts, screws, packaging can be obtained from a local supplier. c. The design engineer specified that body bushing and handle be made of cast bronze and the cap and stem of the valve be machined from standard brass bar stock. d. The following need to be fabricated the bushing, stem, cap, handle. e. Inspection is required for all fabricated parts prior to delivery to final assembly. Construct an operation process chart, precedence diagram and rout sheets. Body Abletom and bushing to body 001 0011 001- 001 * 3 Sem 001 Packing Asemble Cup Cao A 000 Assemble Handle C od Nut Final Inspection Pure Chart Pen Body 001 Carbonar Cute NA Suede 200 000 Purch Bushing Stem Fiber packing Cap Handle Nut + 2 3 Am Operation Oration Final bly Clean Inspecteur teed Pack in boxes Figure 1.2: Partlisted by perti 005 013 007 Body Bushing Assemble stem and bushing to body Stem 11 Packing SAI 43 Assemble Cap Cap Handle Assemble Handle Nut Final Inspection Figure 1.1 Ansembly Chart Parts List Part No 001 002 Parts Body Bushing Stem Fiber packing Cap Handle Nut 003 004 005 006 007 Material Castro Cast bronne 3/8 in bar Purchased port 3.14 in heterock Cast brone Purchased part 001-1 0017 001- Cat Machine con 002-1 03-5 0031 1993 8 356 000 0021 Assembly Operations Operation Machine No 1 WN- Final assembly Clean Inspect pressure testi Pack in boxes Iminad 2.00 050 120 Solvent tank Water test stand Bench Figure 1.21 Part list and assembly operations AB
