Answer all questions and show your working MICROPROCESSOR BASED SYSTEM

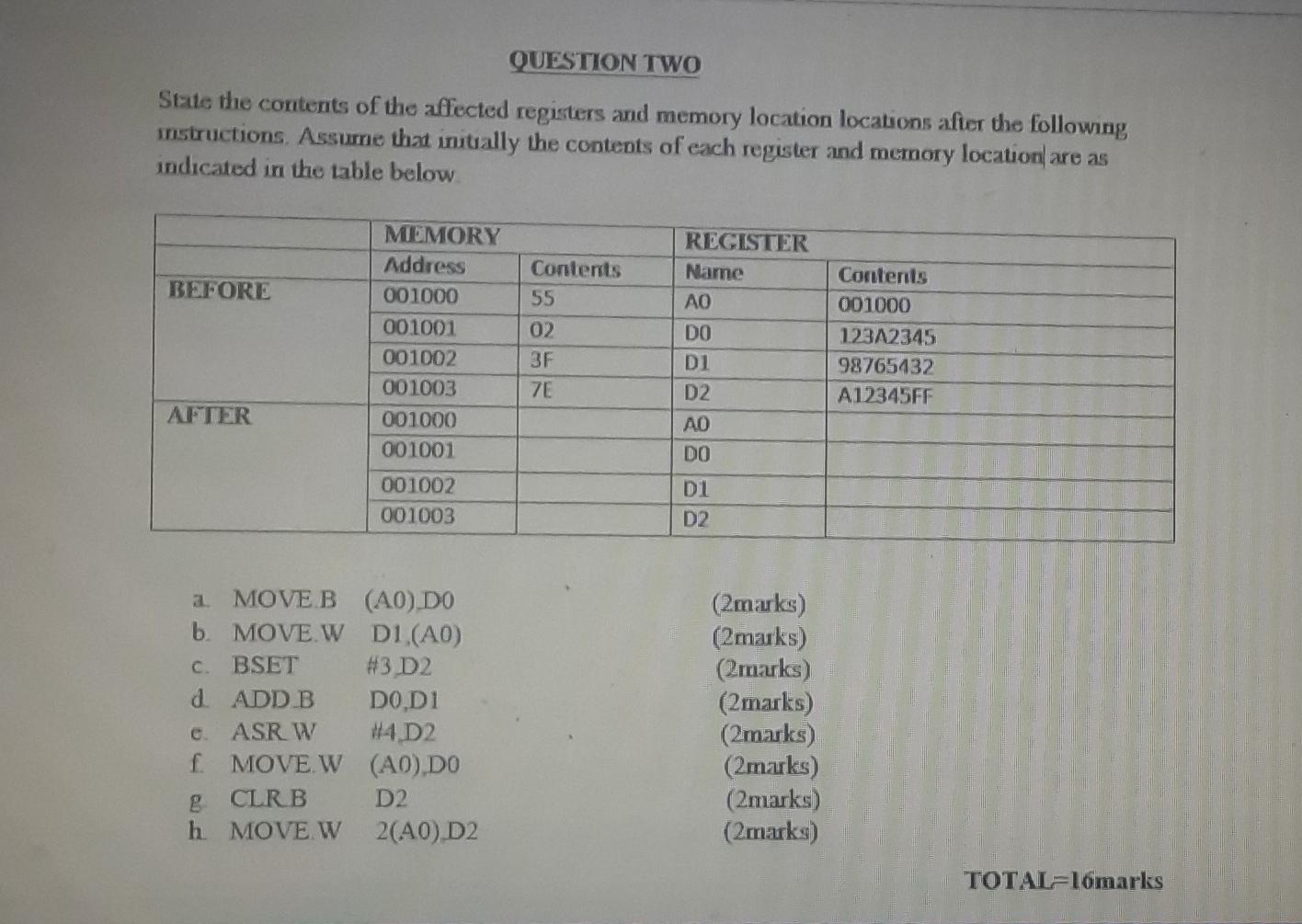

QUESTION TWO State the contents of the affected registers and memory location locations after the following instructions. Assume that initially the contents of each register and memory location are as indicated in the table below. BEFORE MEMORY Address 001000 001001 001002 001003 001000 001001 Contents 55 02 3F ZE REGISTER Name DO D1 D2 Contents 001000 12312345 98765432 A12345FF AFTER AO DO 001002 001003 D1 D2 MOVEB (AO) DO b. MOVE W D1 (AO) C. BSET #3 D2 d ADD B DO DI ASR W #4D2 f MOVE.W (AO) DO 2 CLRB D2 h MOVE W 2(40) D2 (2marks) (2 marks) (2marks) (2 marks) (2marks) (2marks) (2 marks) (2 marks) TOTAL=lmarks
