Question: Assume, initially, If the single cycle processor (that we implemented in lectures) below is executing the instruction then what will be the numeric values (in

Assume, initially, If the single cycle processor (that we implemented in

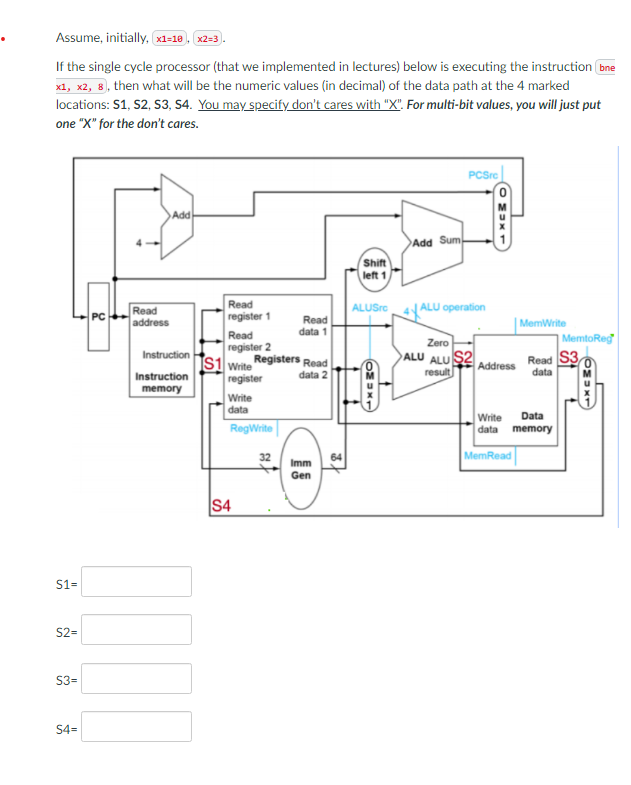

Assume, initially, If the single cycle processor (that we implemented in lectures) below is executing the instruction then what will be the numeric values (in decimal) of the data path at the 4 marked locations: S1, S2, S3, S4. You may specify don't cares with "X". For multi-bit values, you will just put one " X " for the don't cares

Step by Step Solution

There are 3 Steps involved in it
