Question: Automatic Controls Hw help please Problem 3 For the control system represented in the block diagram below, consider the root locus of the closed -

Automatic Controls Hw help please
Problem 3

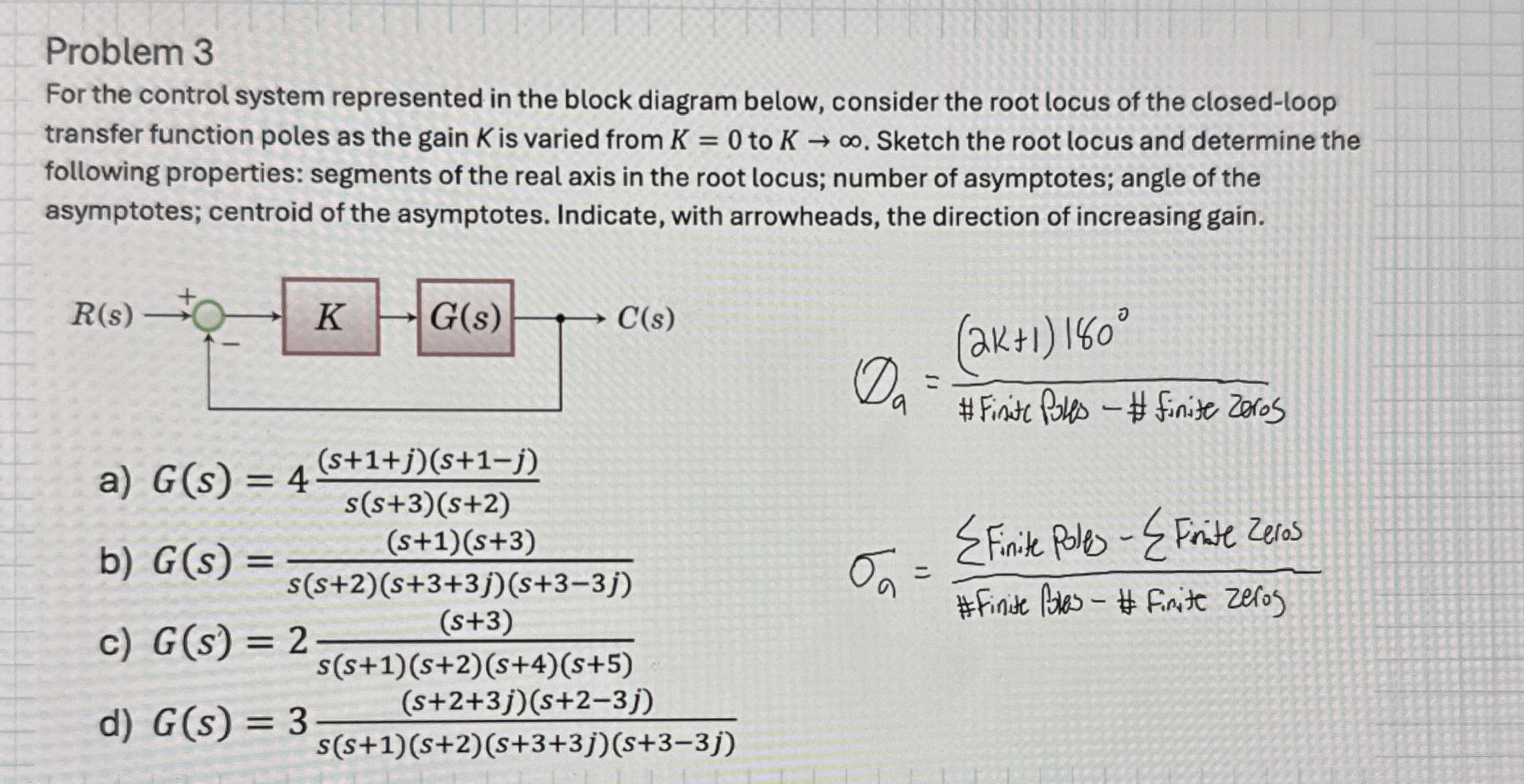

For the control system represented in the block diagram below, consider the root locus of the closed-loop transfer function poles as the gain K is varied from K=0 to K. Sketch the root locus and determine the following properties: segments of the real axis in the root locus; number of asymptotes; angle of the asymptotes; centroid of the asymptotes. Indicate, with arrowheads, the direction of increasing gain.
a)G(s)=4(s+1+j)(s+1-j)s(s+3)(s+2)
Da=(2k+1)180#FinatPules-??#FinisteZeres
b)G(s)=(s+1)(s+3)s(s+2)(s+3+3j)(s+3-3j)
c)G(s)=2(s+3)s(s+1)(s+2)(s+4)(s+5)
a=??FinitePiles-??FiniteZeros#FiniteBres-#Finitezeros
d)G(s)=3(s+2+3j)(s+2-3j)s(s+1)(s+2)(s+3+3j)(s+3-3j)
