(a)What is the command to display the R1 routing table?

[1 mark]

(b) There are three types of routes in a router's routing table. Based on Figure 6 and Table 1, name the THREE (3) types and their route.

[3 marks]

(c) Which path (route) and the next hop will R1 router choose to forward the packet to the host destination?

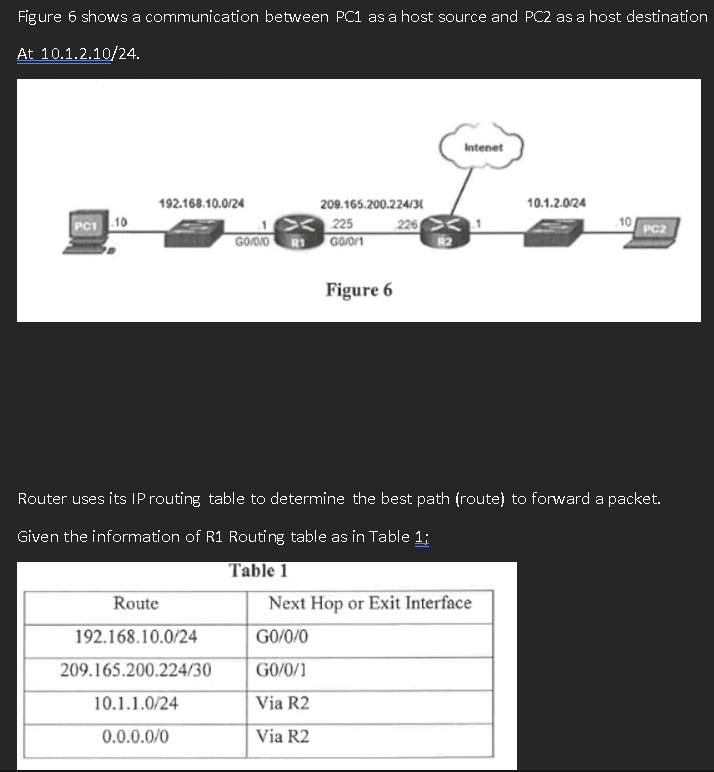

Figure 6 shows a communication between PC as a host source and PC2 as a host destination At 10.1.2.10/24 Router uses its IP routing table to determine the best path (route) to forward a packet. Given the information of R1 Routing table as in Table 1 : Table 1
