Question: a)Write what each instruction does in the comment section. The first one is completed for you Address nstruction X0123 X0124 0001 0010 0010 1010 X0125

a)Write what each instruction does in the "comment section. The first

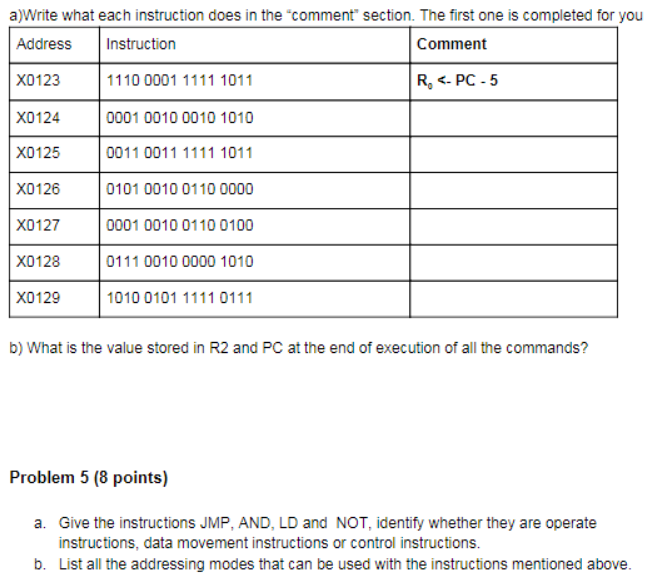

a)Write what each instruction does in the "comment section. The first one is completed for you Address nstruction X0123 X0124 0001 0010 0010 1010 X0125 X0126 X0127 0001 0010 0110 0100 X0128 0111 0010 0000 1010 X0129 Comment R, PC- 0101 0010 0110 0000 b) What is the value stored in R2 and PC at the end of execution of all the commands? Problem 5 (8 points) Give the instructions JMP, AND, LD and NOT, identify whether they are operate instructions, data movement instructions or control instructions. List all the addressing modes that can be used with the instructions mentioned above. a. b
