Question: Based on the above SR Latch, select all statements that are TRUE. For an input S of logic 1 and input R of logic 1

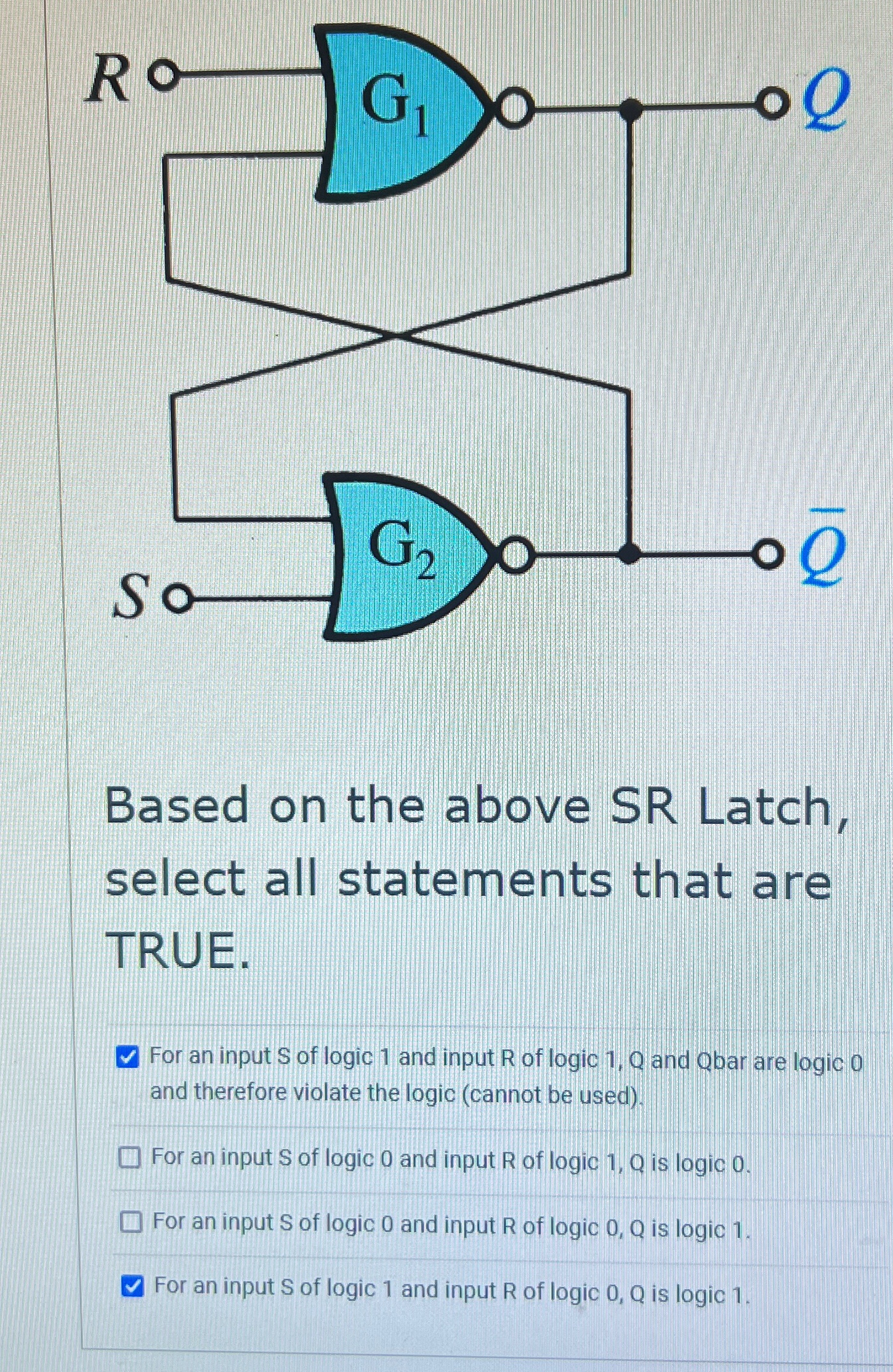

Based on the above SR Latch, select all statements that are TRUE.
For an input S of logic 1 and input R of logic 1, Q and Qbar are logic 0 and therefore violate the logic (cannot be used)
For an input S of logic 0 and input R of logic 1,Q is logic 0.
For an input S of logic 0 and input R of logic O,Q is logic 1.
For an input S of logic 1 and input R of logic 0,Q is logic 1.
 Based on the above SR Latch, select all statements that are
