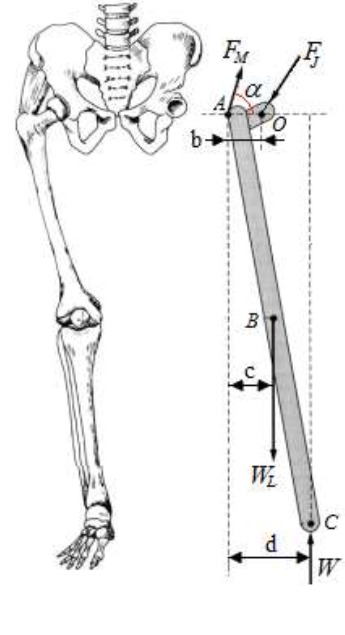

Question: Based on the given free - body diagram, write the equilibrium equations and determine the force of the abductor muscles Fm and the reaction force

Based on the given free-body diagram, write the equilibrium equations and determine the force of the abductor muscles Fm and the reaction force of the hip joint Fj, which arise during slow walking in the stance phase on one leg, under the following conditions: W body weight (support reaction)=900 N; Wl=0.16W weight of the lower limb; =70, b=7cm, c=10cm, d=18cm.
Based on the given free - body diagram, write the

Step by Step Solution

There are 3 Steps involved in it
