Question: Based on the truth table as shown in Table 1, using Sum-of-product method to design a logic circuit, A, B are input, C is output.

Based on the truth table as shown in Table 1, using

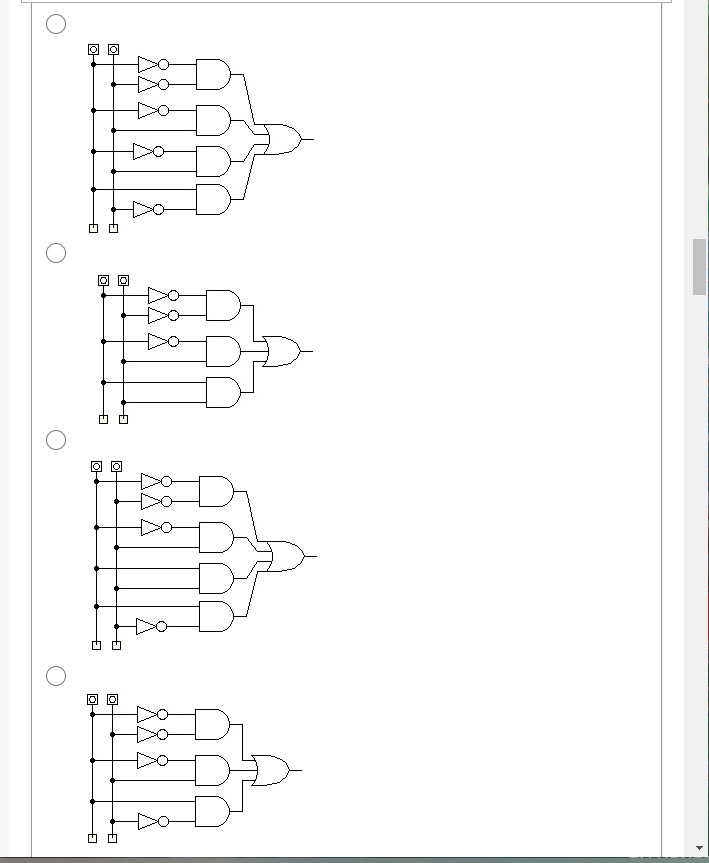

Based on the truth table as shown in Table 1, using Sum-of-product method to design a logic circuit, A, B are input, C is output. Select the correct answer A B C 0 0 1 0 1 1 1 0 0 1 1 1

B B A O- OH

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
