Question: Booths Algorithm Booths Algorithm num1 num2 ? multiplicand multiplier product o low-order bit and previous bit (initially 0) of product 00-> no operation shift right

Booths Algorithm

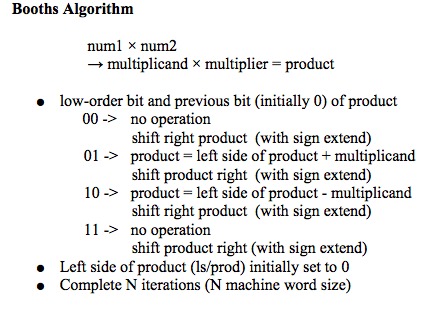

Booths Algorithm Booths Algorithm num1 num2 ? multiplicand multiplier product o low-order

bit and previous bit (initially 0) of product 00-> no operation shift

right product (with sign extend) 01 product-left side of product + multiplicand

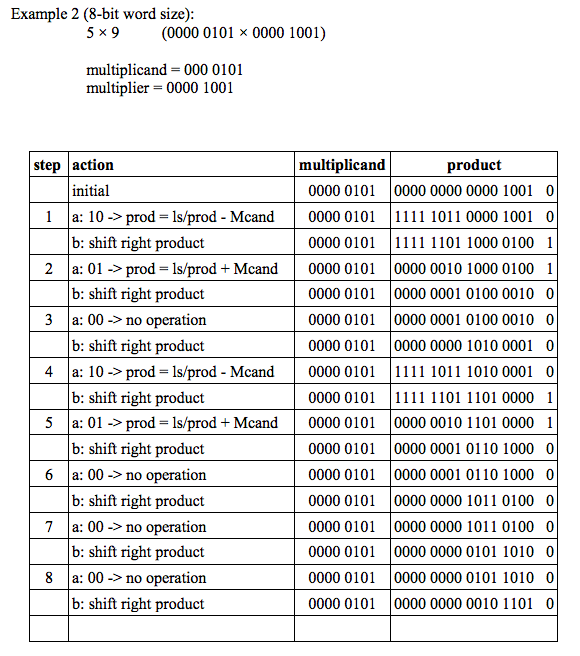

Booths Algorithm num1 num2 ? multiplicand multiplier product o low-order bit and previous bit (initially 0) of product 00-> no operation shift right product (with sign extend) 01 product-left side of product + multiplicand shift product right (with sign extend) 10 -> product- left side of product - multiplicand shift right product (with sign extend) 11 no operation shift product right (with sign extend) Left side of product (ls/prod) initially set to 0 Complete N iterations (N machine word size)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

#include #include #include #include /* * */ #define SIZE 8 // The size of the two numbers to be multiplied is 8-bit. // Define the prototypes for functions used in the code. short Booth(char *input1,...

*/ #include #include #include #include /* * */ #define SIZE 8 // The size of the two numbers to be multiplied is 8-bit. // Define the prototypes for functions used in the code. short Booth(char...

#include #include #include #include /* * */ #define SIZE 8 // The size of the two numbers to be multiplied is 8-bit. // Define the prototypes for functions used in the code. short Booth(const char...

Please see example below for what this should look like, thank you! ---------example--------------- Start with two signed decimal numbers and identify the multiplicand (first operand) and multiplier...

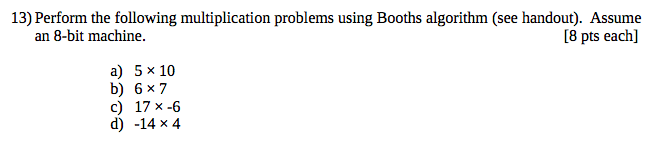

(M1) Multiply - 4 x 2 using Booths algorithm. Show the steps. Assume if 4-bit word-size. Recall that: 00 -> no operation shift right product (with sign extend) 01 -> product = left side of product +...

ECE444/ECE501 Homework Assignment #10 Due 2PM, Thursday, 25 October, 2018 Booths Algorithm (Signed Multiplication): (425 Points) Booths algorithm is a method of efficient Signed multiplication. Input...

7.1 Objective In the final project, you are required to design and implement a 4-bit Booth's Multiplier, which performs the multiplication of two signed binary numbers. Altera toolset will be used to...

Q3. [20 marks) (a) The figure on the left below shows the Booth's Algorithm for Two's Complement Multiplication. The multiplier and multiplicand, each is n-bit, are placed in the Q and M registers,...

Which one of the following statements about Booth's algorithm for multiplication is false? Because add is the same operation for both 2 ' s complement and unsigned binary ( ignoring overflow and...

code : /***************************************************************** * Program: multiply.C * * Purpose: implements/illustrates a recursive version of the russian * peasant's algorithm for...
