Question: carrying a ( 1 0 . 0 - mathrm { A } ) current as shown in the figure. ( Figure 1

carrying a \(10.0-\mathrm{A}\) current as shown in the figure.(Figure 1)
Figure
Part A
Determine the magnitude of the net force on the loop due to the straight wire.
Express your answer to two significant figures and include the appropriate units.
Part B
Determine the direction of the net force on the loop due to the straight wire.
to the left
to the right
upwards
downwards
Part C
Determine the net torque on the loop due to the straight wire.

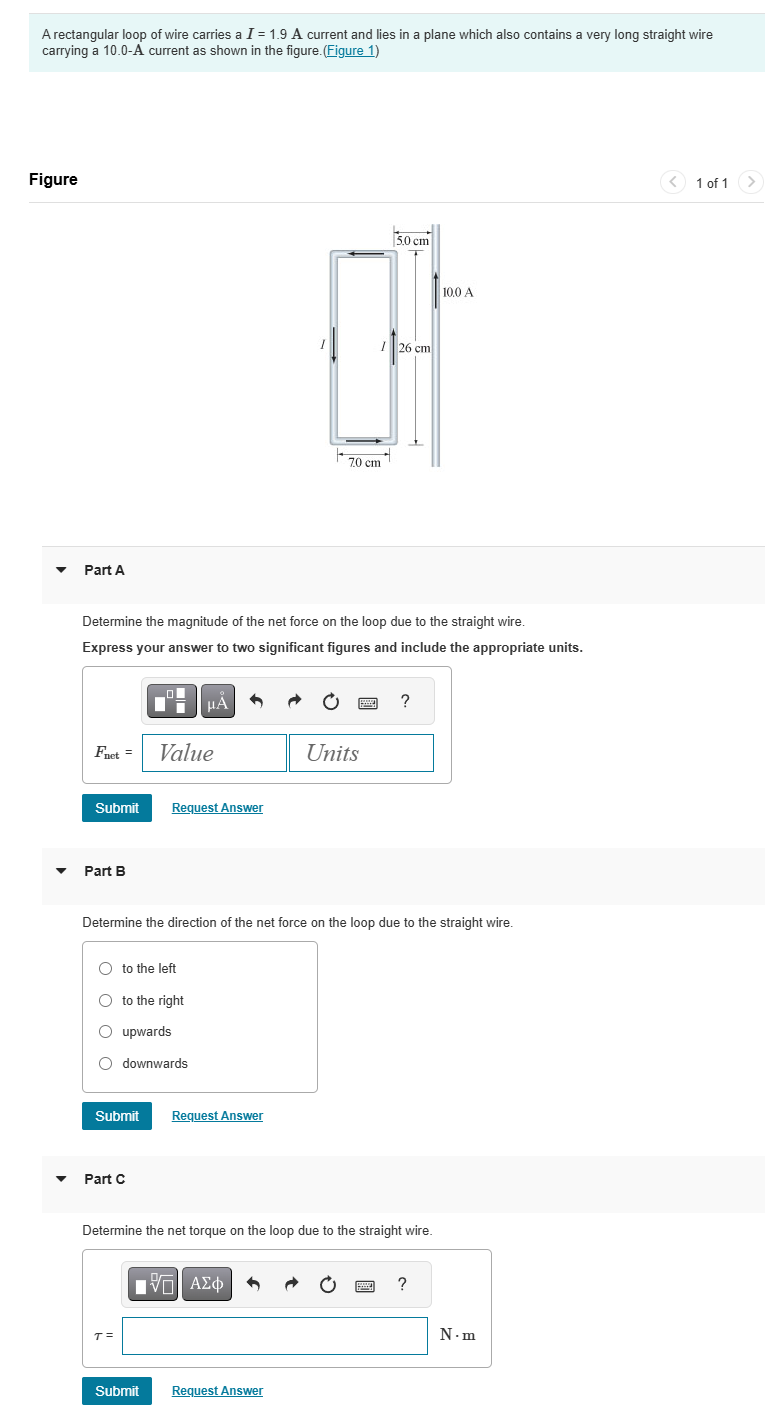

carrying a \ ( 1 0 . 0 - \ mathrm { A } \ )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
