C++data structure problem

Image components labeling by using rat in the maze and Lee's wire.

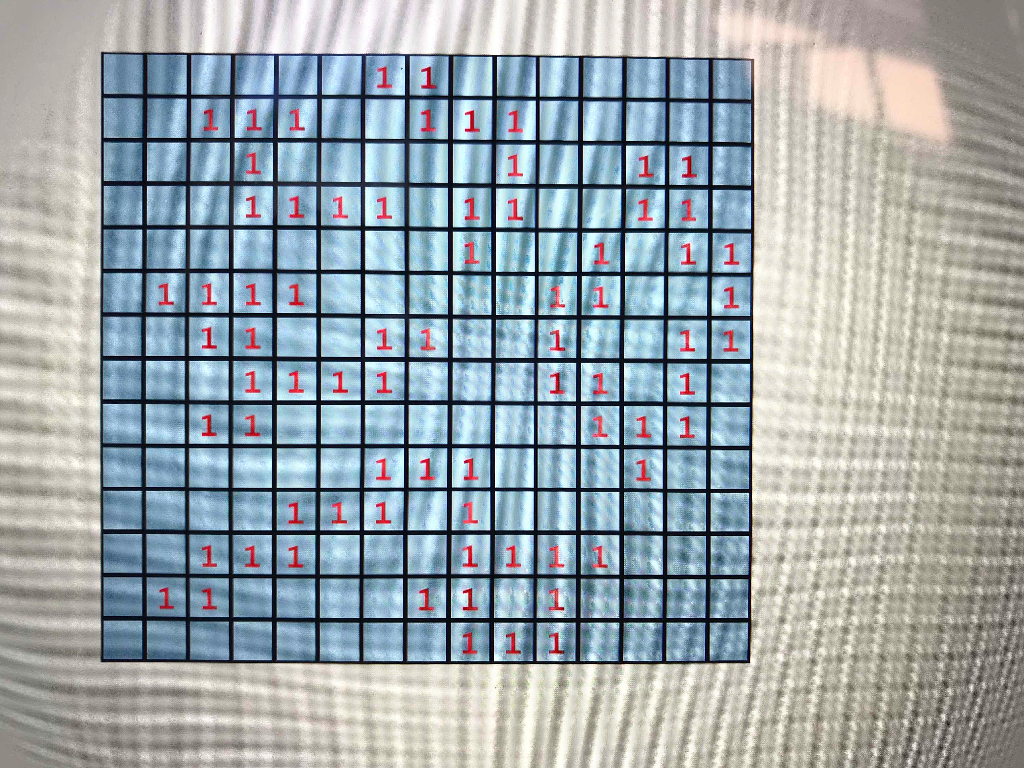

A digitized image is an m x m matrix of pixels.

-> pixel is a word invented from "picture element

In a binary image, each pixel is either 0 or 1.

-> A 0 pixel represents image background, while a 1 represents a pixel on

an image component.

-> We will refer to pixels whose value is 1 as component pixels.

Two pixels are adjacent if one is to the left, above, right, or below the other.

Two component pixels that are adjacent are pixels of the same image

component.

The objective of component labeling is to label the component pixels so

that

two pixels get the same label

if and only if

they are pixels of the same image component.

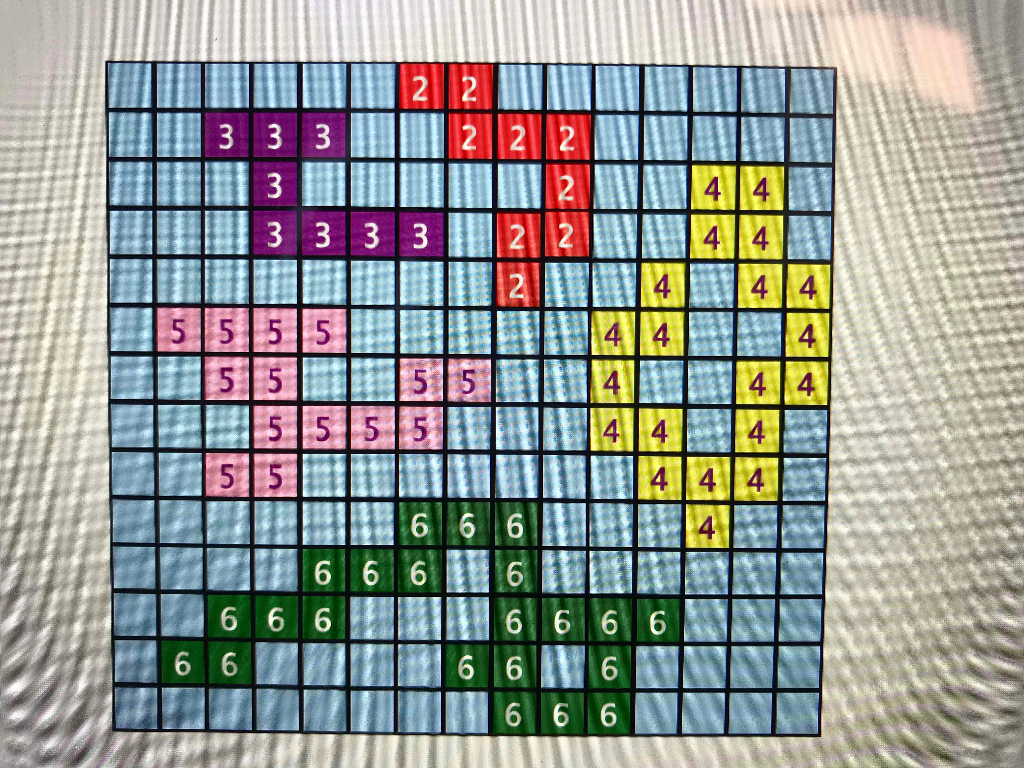

The components are determined by scanning the pixels by rows, from top

to bottom, and within each row by columns, from left to right.

When an unlabeled component pixel is encountered, it is given a component

identifier/label (new color). Labels are assigned starting with 2, because 1

denotes foreground and 0 denotes background.

See starter code...

Your task is to complete the labelComponents() method and implement this program, using either Depth First Search or Breadth First Search. Submit source code and output corresponding to the given input

// componentLabeling .cpp

// image component labeling

#include

#include "make2dArray.h"

#include "arrayQueue.h"

#include "position.h"

using namespace std;

// global variables

int **pixel;

int size; // number of rows and columns in the image

// functions

void welcome()

{// Not yet implemented.

}

void inputImage()

{// Input the image.

cout

cin >> size;

// create and input the pixel array

make2dArray(pixel, size + 2, size + 2);

cout

for (int i = 1; i

for (int j = 1; j

cin >> pixel[i][j];

}

void labelComponents()

{// Label the components.

//

// Add Your Code Here

//

}

void outputImage()

{// Output labeled image.

cout

for (int i = 1; i

{

for (int j = 1; j

cout

cout

}

}

void main()

{

welcome();

inputImage();

labelComponents();

outputImage();

}

1 11 1111 11 1 1 1 1 le 7 HA 1 1 III 111 TE 1 |1|11 333 222 3333 |4||414] 5||5|5| 1515 ||5| |5|5 15|5| 666 666 6666 666 | 666 6 6
