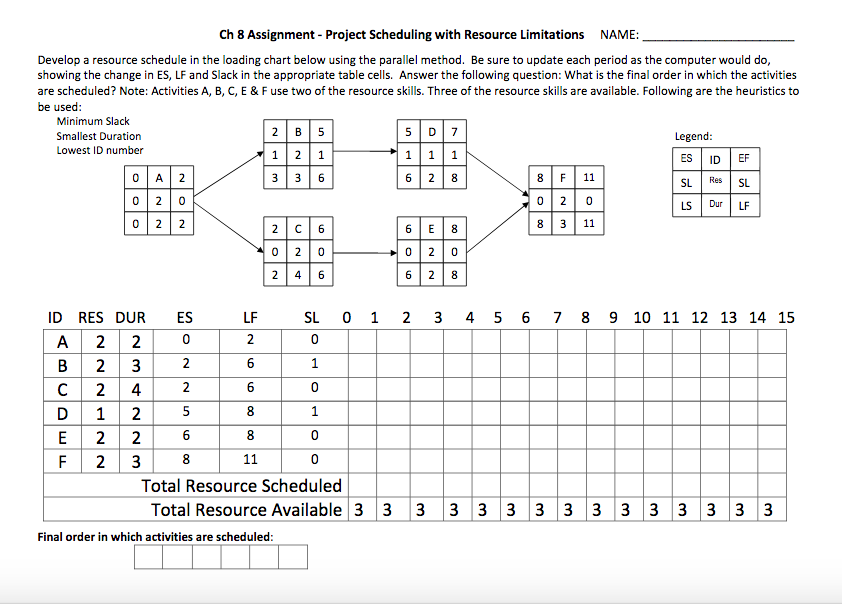

Ch 8 Assignment - Project Scheduling with Resource Limitations NAME: Develop a resource schedule in the loading chart below using the parallel method. Be sure to update each period as the computer would do, showing the change in ES, LF and Slack in the appropriate table cells. Answer the following question: What is the final order in which the activities are scheduled? Note: Activities A, B, C, E \& F use two of the resource skills. Three of the resource skills are available. Following are the heuristics to be used: Minimum Slack Smallest Duration Lowest ID number \begin{tabular}{|l|l|l|} \hline 0 & A & 2 \\ \hline 0 & 2 & 0 \\ \hline 0 & 2 & 2 \\ \hline 3 & 3 & 6 \\ \hline \end{tabular} \begin{tabular}{|c|c|c|c|c|c|c|c|c|c|c|c|c|c|c|c|c|c|c|c|c|} \hline A & 2 & 2 & 0 & 2 & 0 & & & & & & & & & & & & & & \\ \hline B & 2 & 3 & 2 & 6 & 1 & & & & & & & & & & & & & & \\ \hline C & 2 & 4 & 2 & 6 & 0 & & & & & & & & & & & & & \\ \hline D & 1 & 2 & 5 & 8 & 1 & & & & & & & & & & & & & & \\ \hline E & 2 & 2 & 6 & 8 & 0 & & & & & & & & & & & & & & \\ \hline F & 2 & 3 & 8 & 11 & 0 & & & & & & & & & & & & & \\ \hline \multicolumn{8}{|c|}{ Total Resource Scheduled } & & & & & & & & & & & & & \\ \hline \multicolumn{1}{|c|}{ Total Resource Available } & 3 & 3 & 3 & 3 & 3 & 3 & 3 & 3 & 3 & 3 & 3 & 3 & 3 & 3 & 3 \\ \hline \end{tabular} Final order in which activities are scheduled
