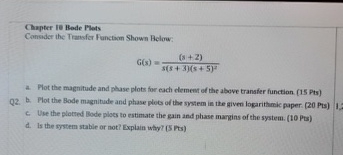

Chapter IE Bede Mets

Consider the Transfer Function Shown Below:

$G(s)=\frac{(s+2)}{s(s+3)(s+5{)}^2}$

a$.$ Plot the magnitude and phase plots for each element of the above transfer function. $(15$ Pts$)$

Q$2.$

b$.$ Pot the Bode magnitude and phase plots of the system in the given logarithmic paper: $(20$ Pis$)$

$6$ Use the plotred liode plots to estimate the gain and phase margins of the system. $(10$ Pts $)$

d$.$ Is the system stable or not? Explain why? $($S Fis$)$
