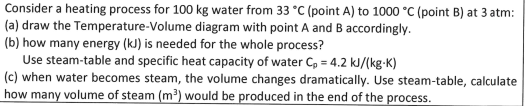

Consider a heating process for 100 kg water from 33 C (point A) to 1000 C (point B) at 3 atm: (a) draw the Temperature-Volume diagram with point A and B accordingly. (b) how many energy (kJ) is needed for the whole process? Use steam-table and specific heat capacity of water Co = 4.2 kJ/(kg-K) (c) when water becomes steam, the volume changes dramatically. Use steam-table, calculate how many volume of steam (m) would be produced in the end of the process. Consider a heating process for 100 kg water from 33 C (point A) to 1000 C (point B) at 3 atm: (a) draw the Temperature-Volume diagram with point A and B accordingly. (b) how many energy (kJ) is needed for the whole process? Use steam-table and specific heat capacity of water Co = 4.2 kJ/(kg-K) (c) when water becomes steam, the volume changes dramatically. Use steam-table, calculate how many volume of steam (m) would be produced in the end of the process
