Question: Consider a project consisting 5 activities: A, B, C, D, E. The dependency matrix the defines their relations are shown below: Predecessor activity (upstream) B

Consider a project consisting 5 activities: A, B,

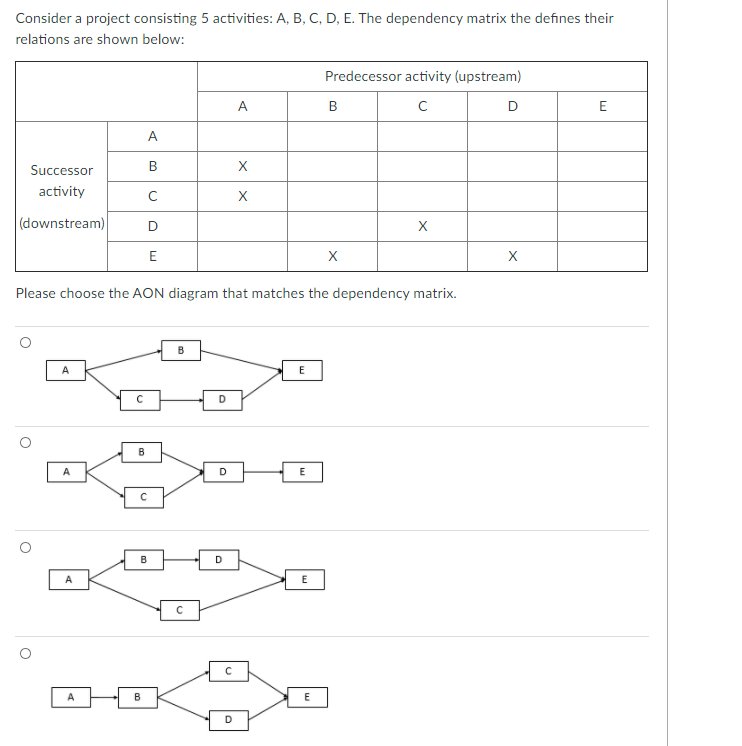

Consider a project consisting 5 activities: A, B, C, D, E. The dependency matrix the defines their relations are shown below: Predecessor activity (upstream) B D E A B X Successor activity X (downstream) D X E Please choose the AON diagram that matches the dependency matrix. A E D O B D E o D O A B E D

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
